Store Lee Valley Veritas Dovetail Saddle Markers

For quick, accurate marking of dovetails, a dovetail marker is the best tool available.

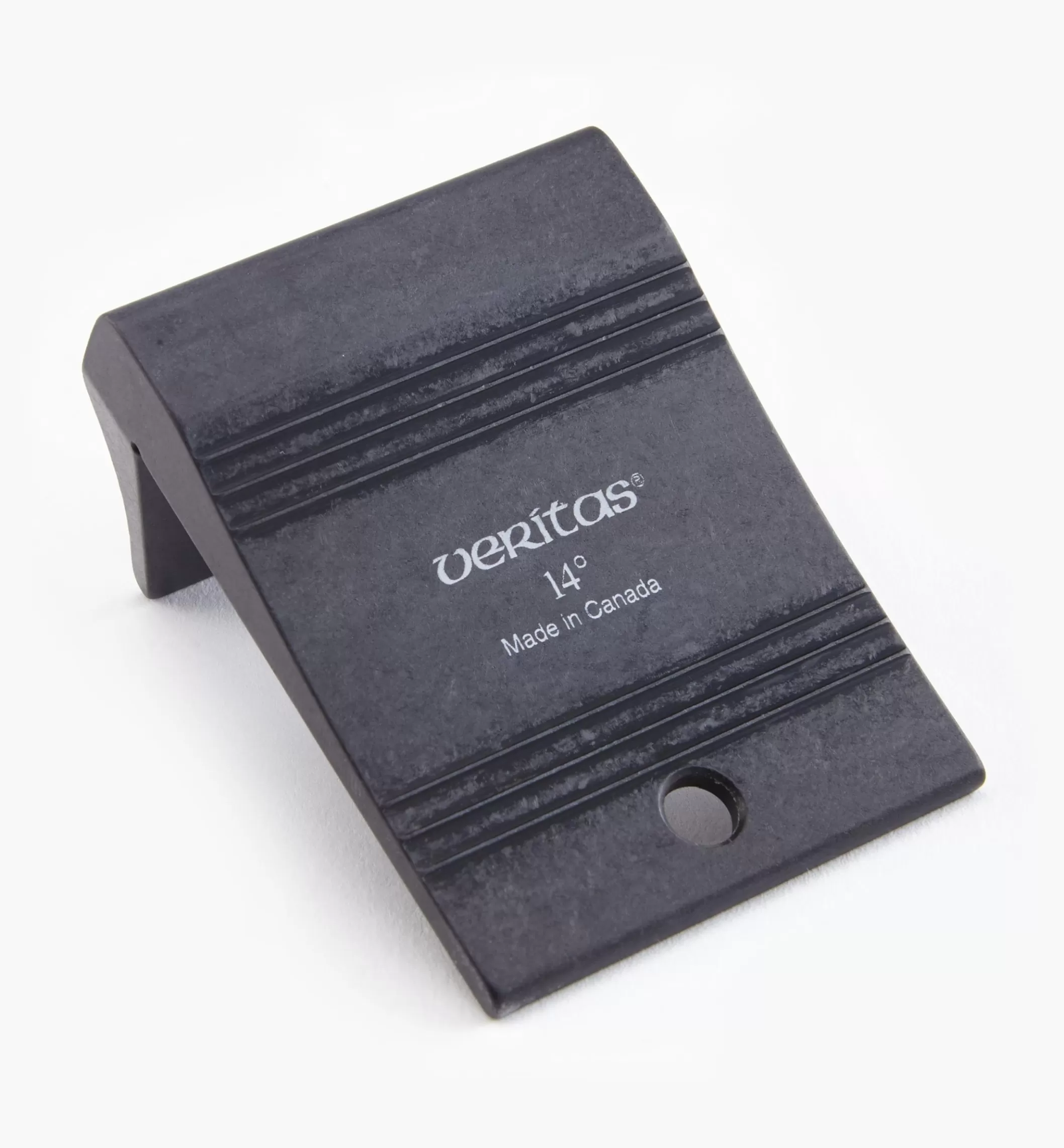

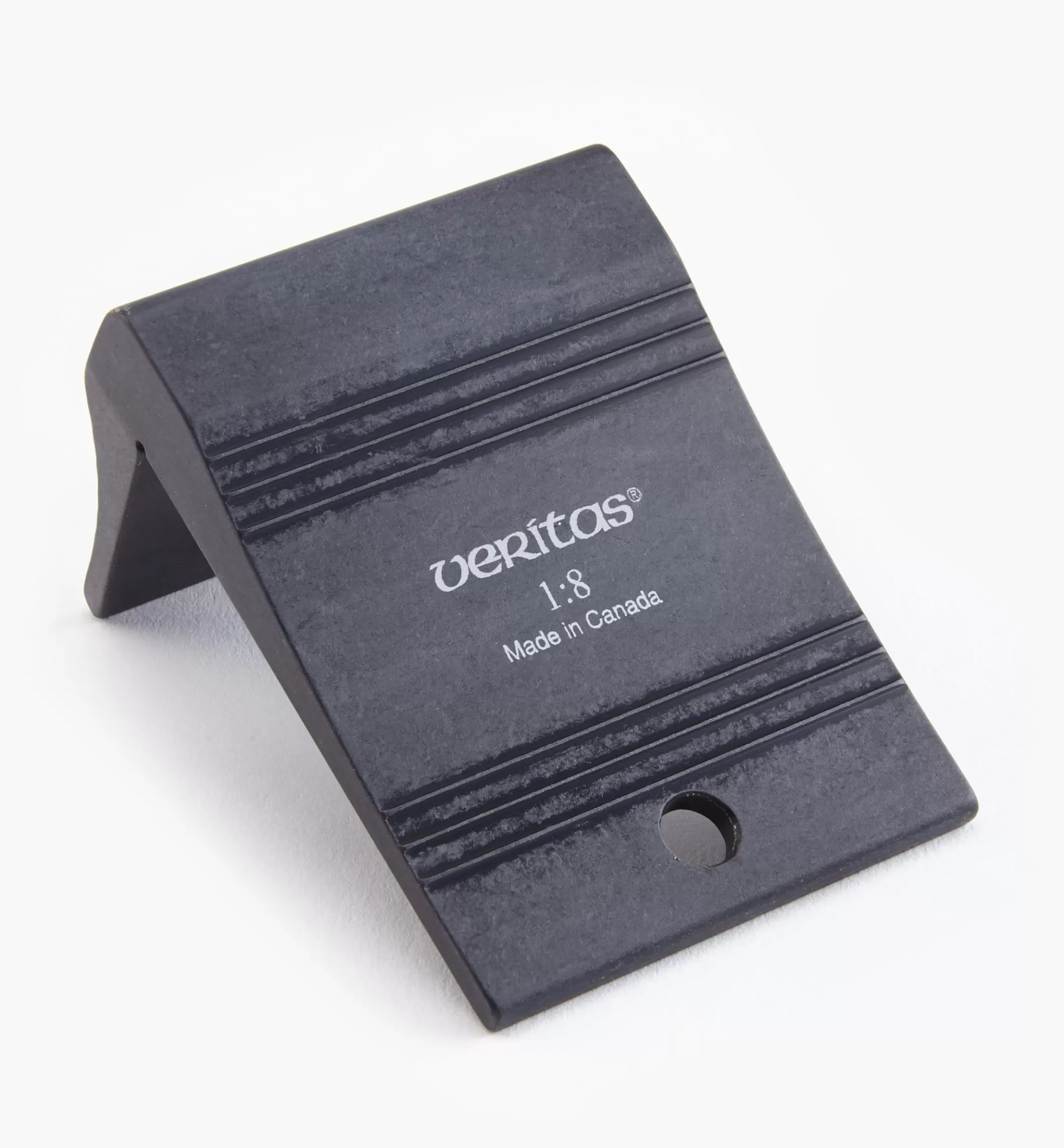

Our dovetail saddle markers are precision machined at 1:6 and 1:8 angles, the traditional angles for softwood and hardwood dovetails respectively. The new 14° marker is designed to approximate a 1:4 ratio, for those who prefer this angle when working in thinner stock, as it not only provides stronger material interlock than traditional ratio angles but produces a slightly exaggerated dovetail joint that many find attractive.

The long legs ensure accurate registration. Also, much like the Veritas saddle square they are based on, they allow a continuous line to be transferred around the corner, so the straight and angled lines can be scribed at the same time, ensuring perfect alignment. The inside corner is relieved to ensure flush seating even on saw whiskers.

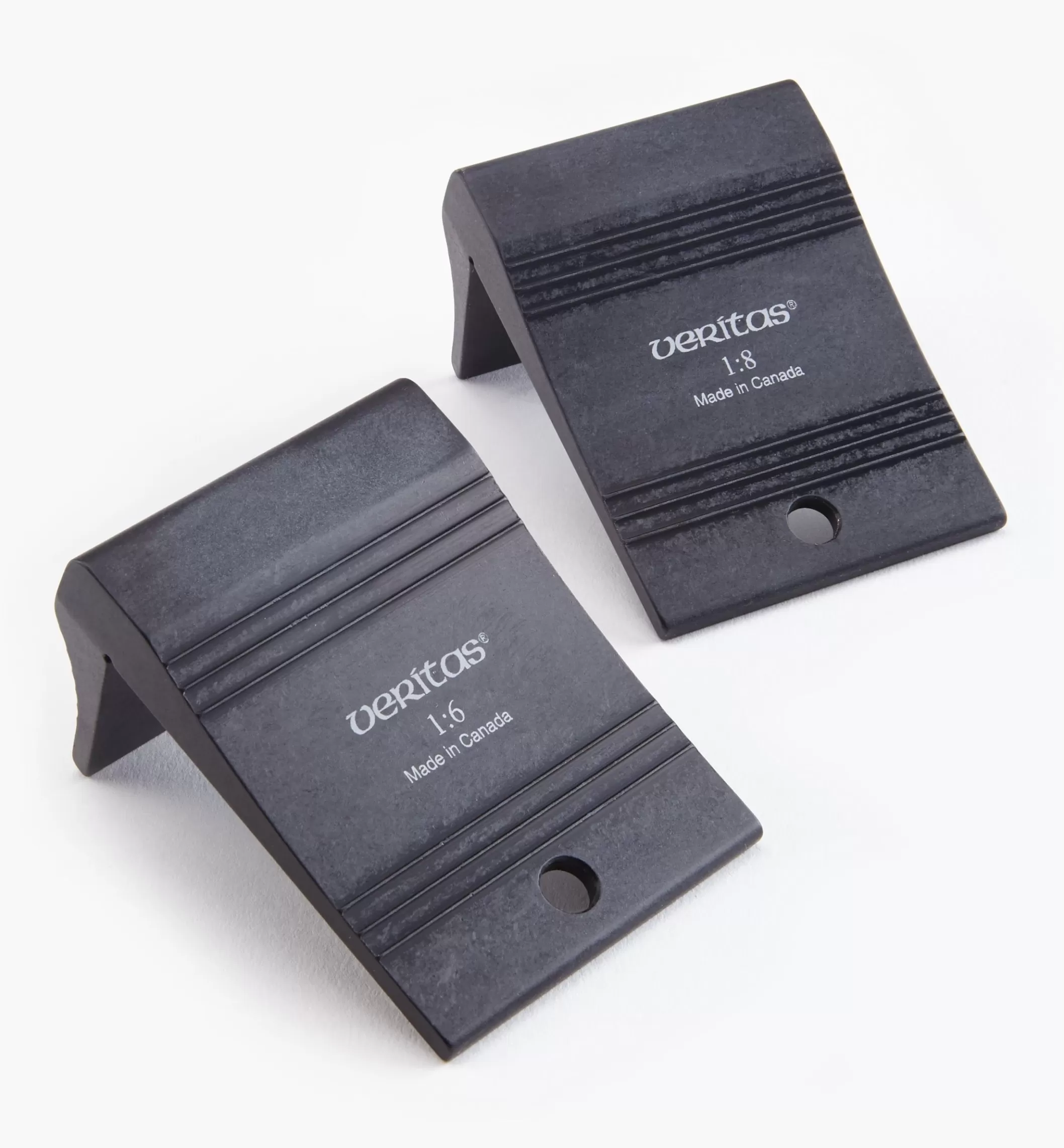

Made from anodized aluminum, these markers are light and durable, and will never mark your work. The 1:6 and 1:8 markers are available as a pair.

Made in Canada.
