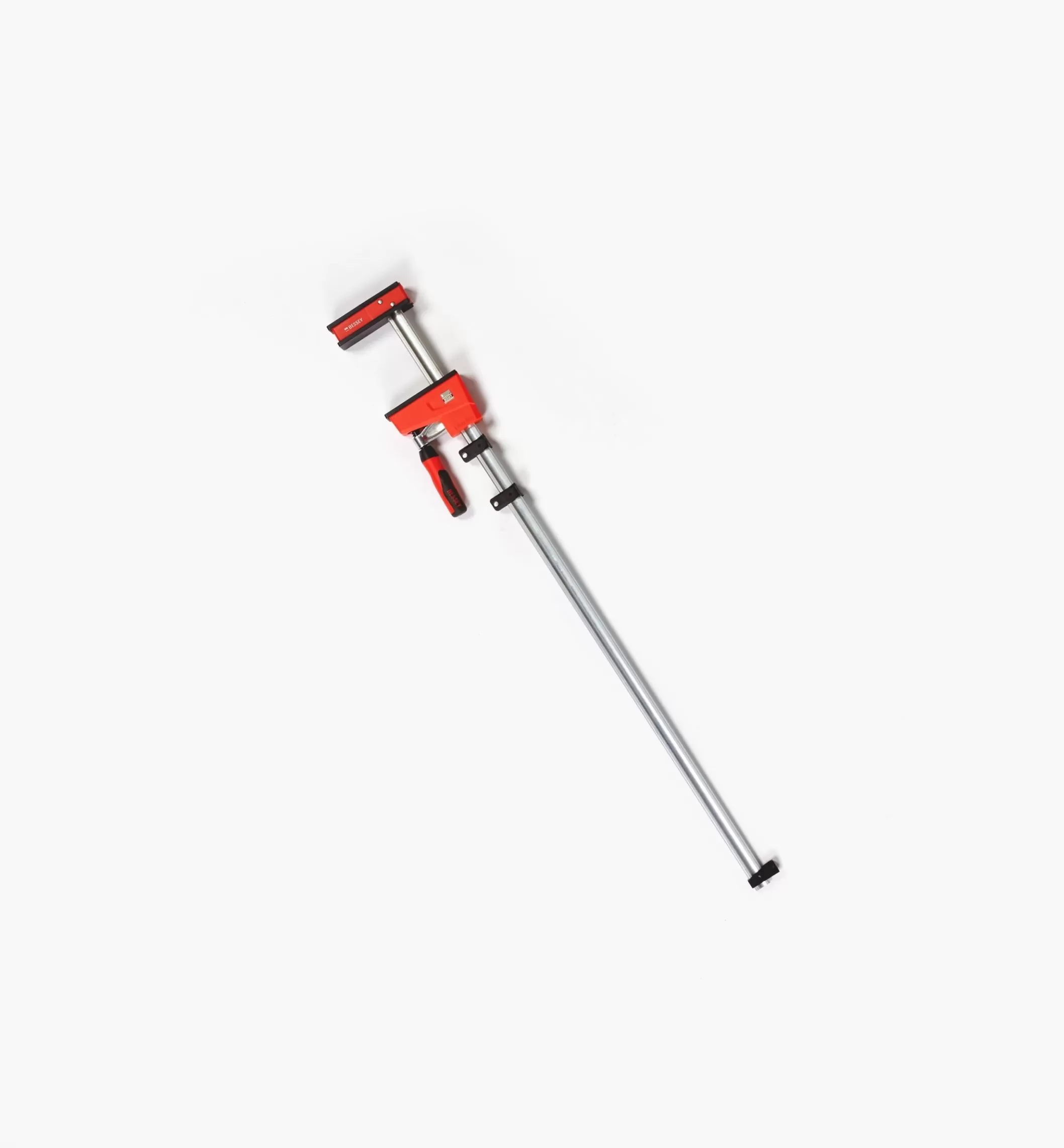

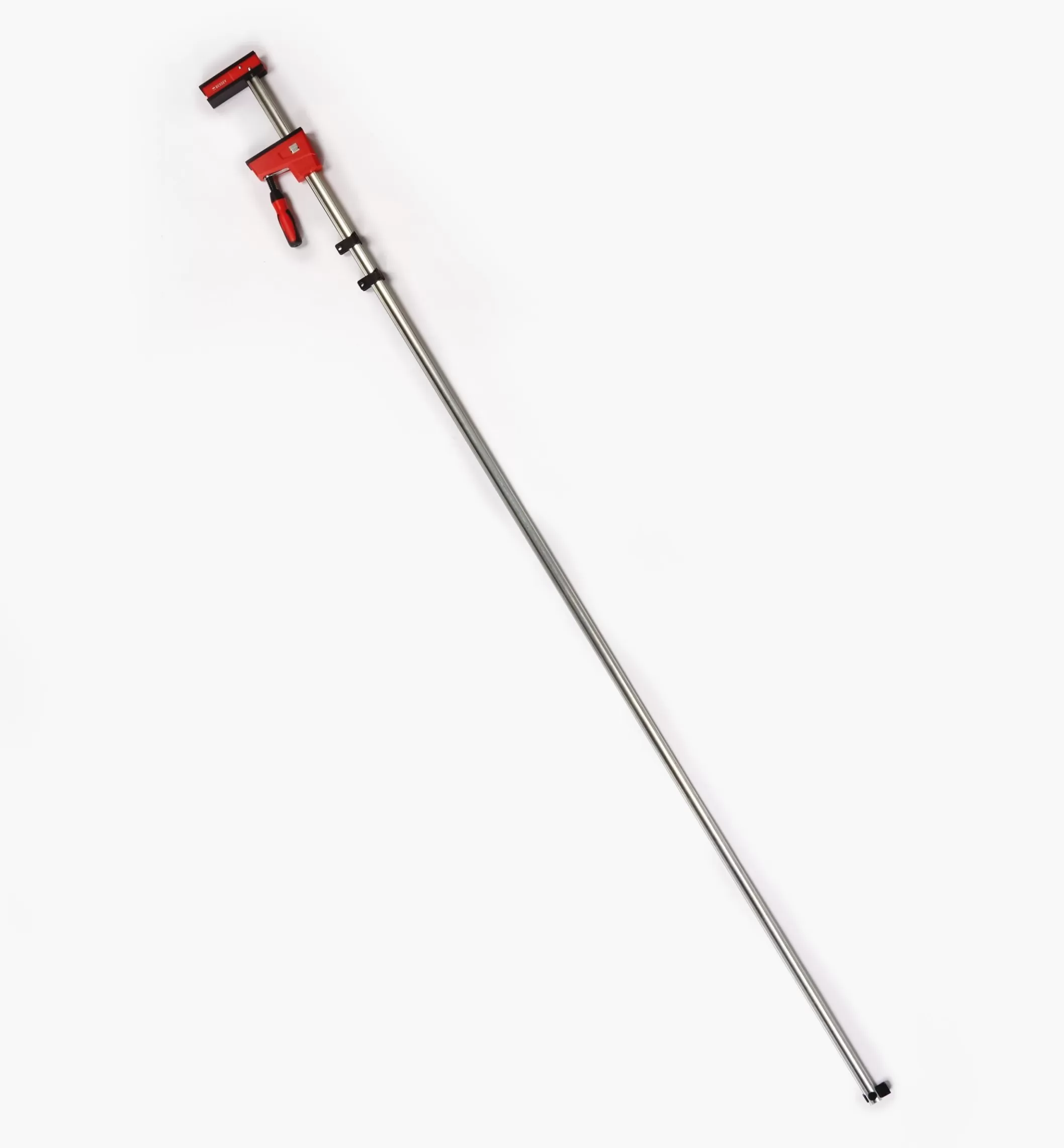

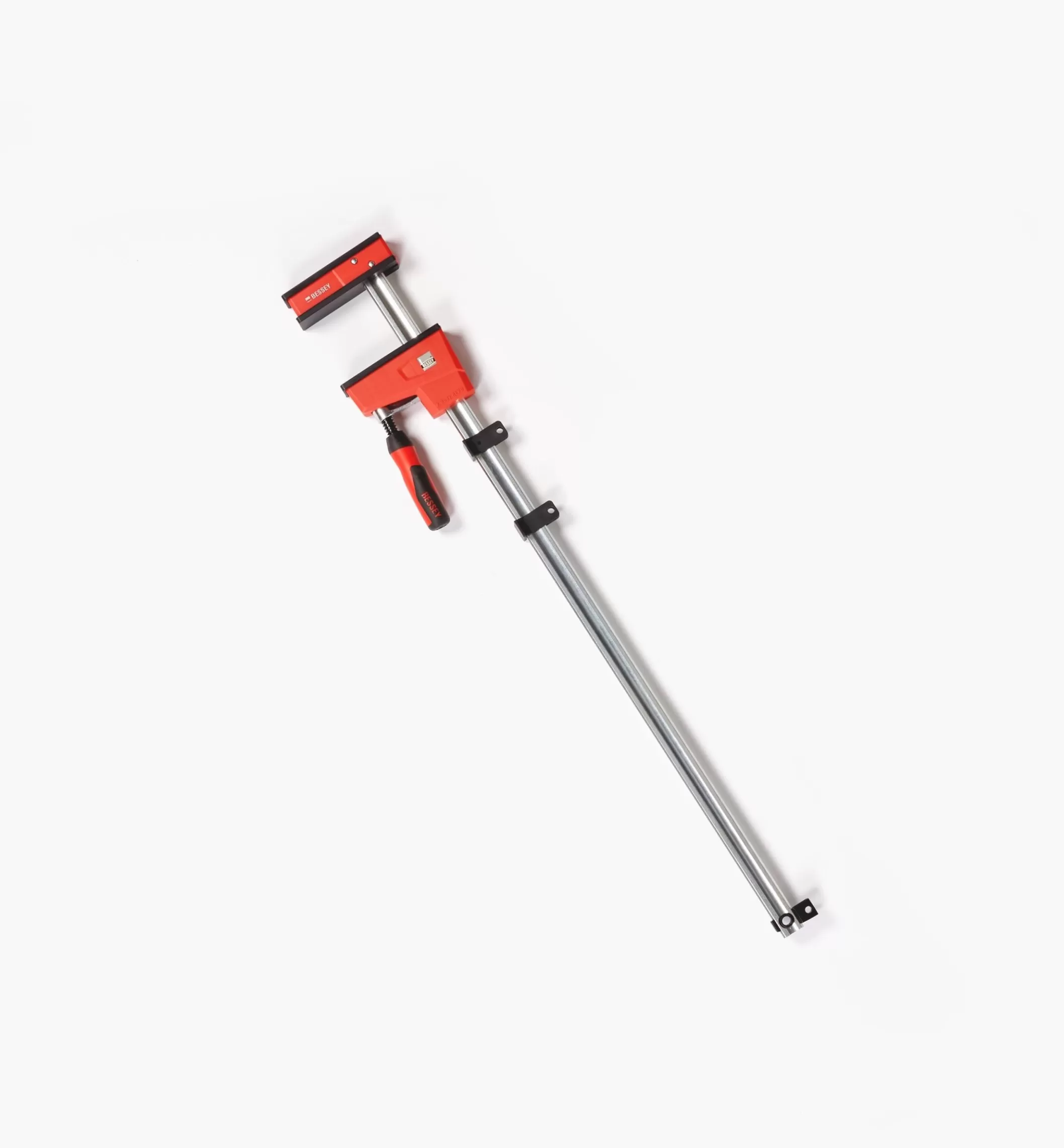

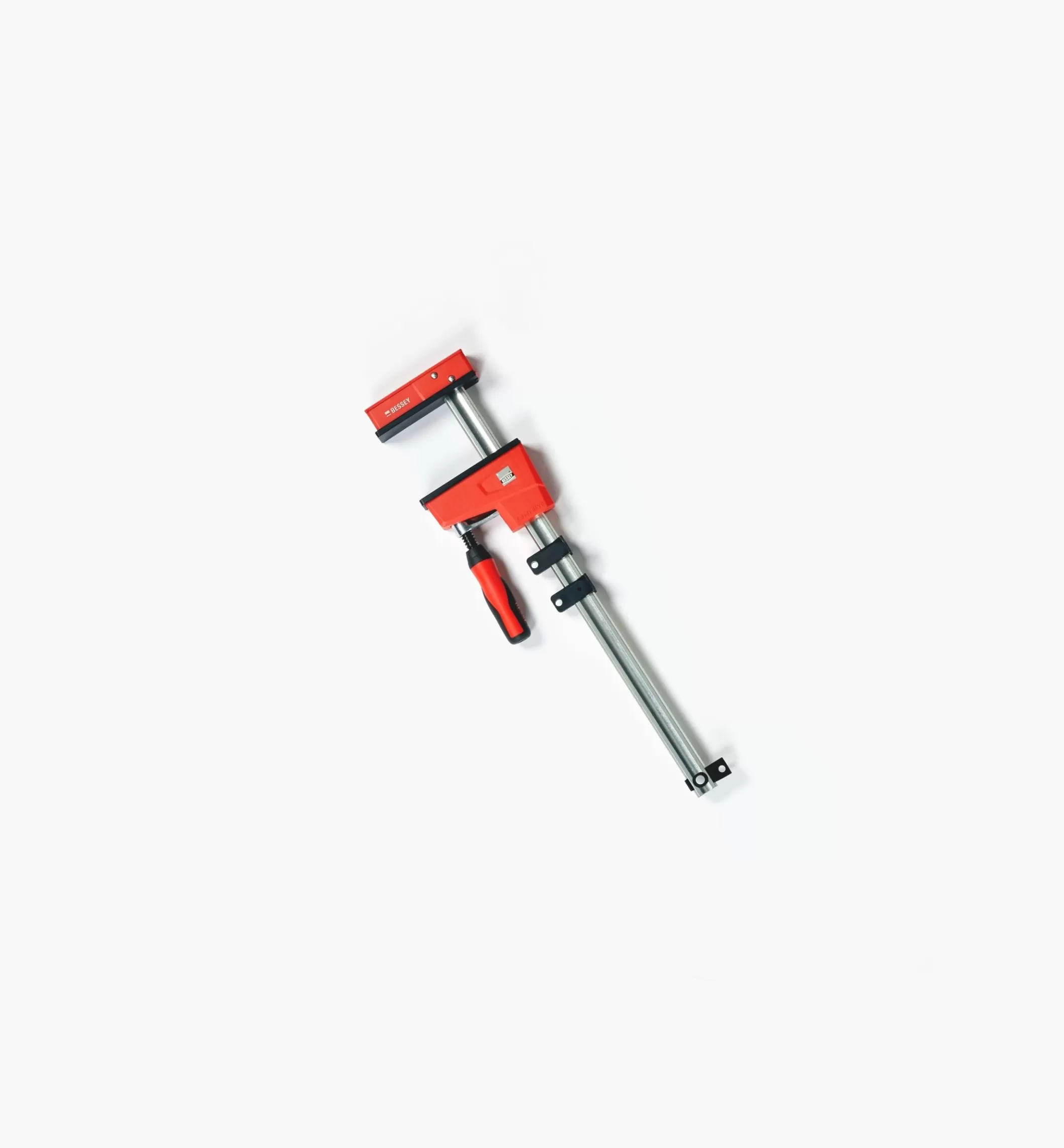

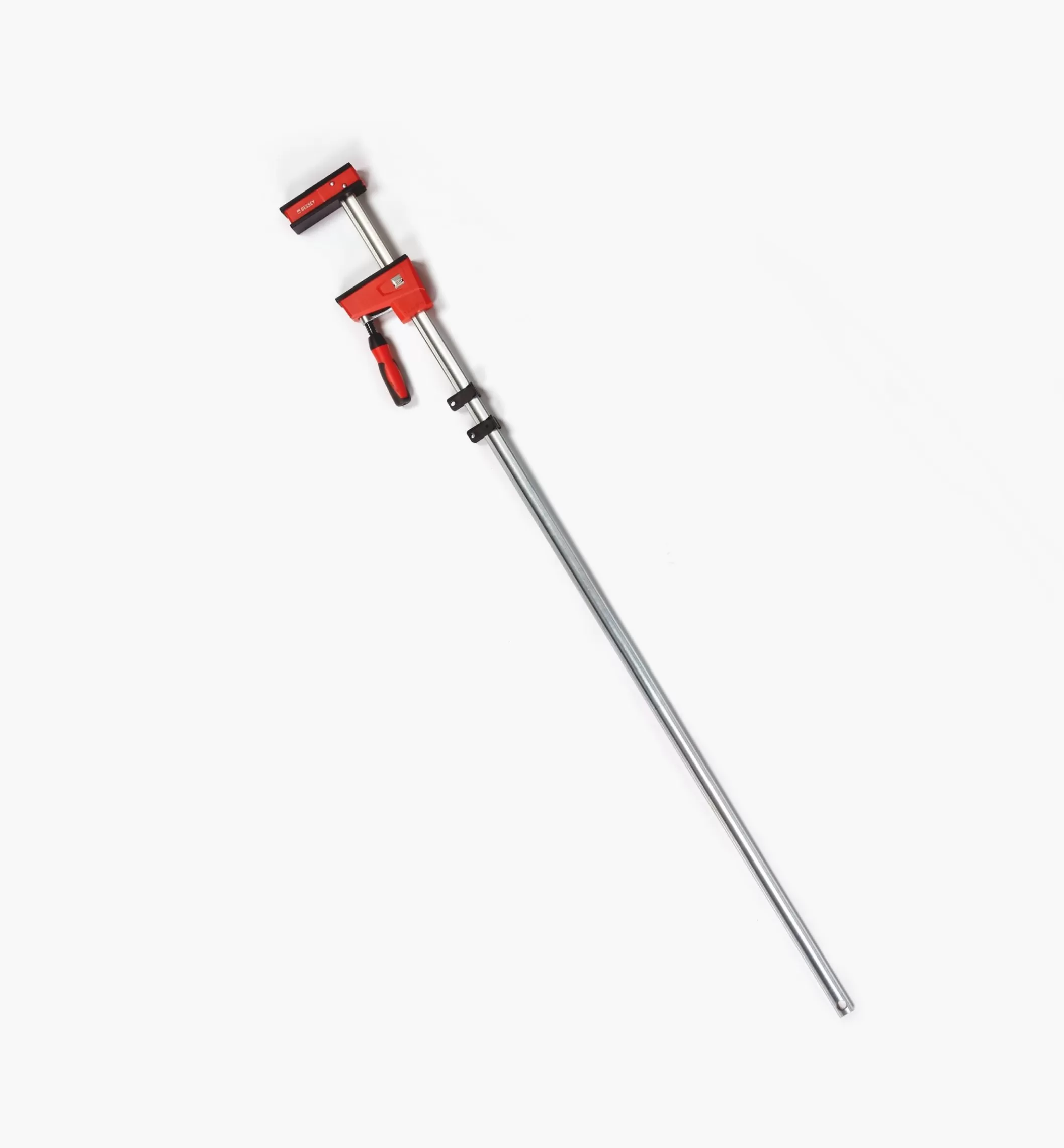

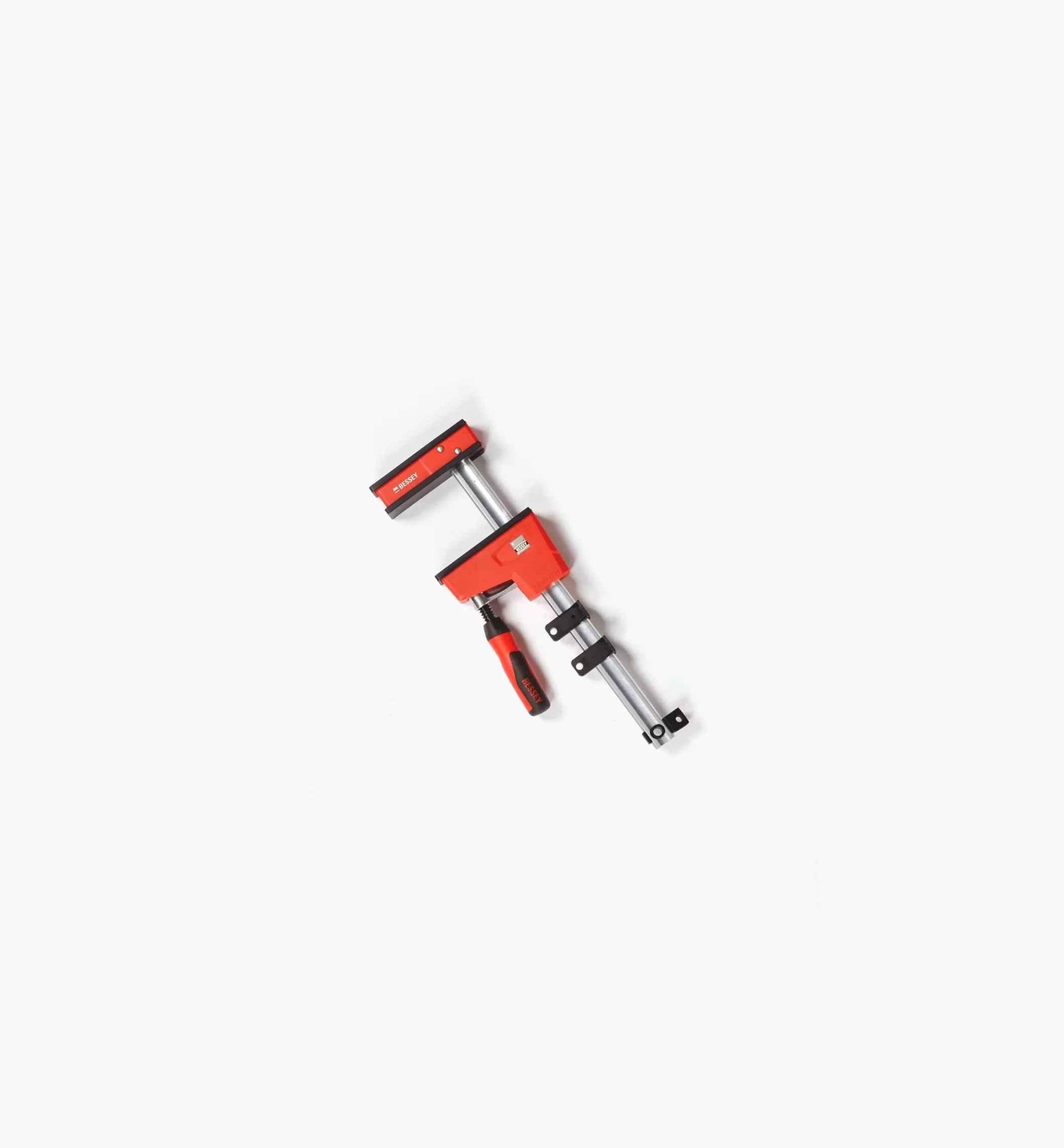

Store Lee Valley Bessey K Body REVO Clamps (Model KRE)

The third iteration of Bessey’s top-of-the-line parallel jaw clamp, the K Body REVO clamps are the workhorses of any shop. A wide range of accessories and replaceable parts and a lifetime warranty ensure your investment in these best-of-class clamps will endure.

Re-engineered with a tighter mechanism, the moveable head now stays in place when not under load. The clamp handle has a co-molded exterior that provides a better grip, and a 6mm hex insert in the handle end for driving with a drill or using a hex key for additional torque.

The 2″ wide by 5 3/4″ long replaceable pads give a larger surface area for pressure distribution. Throat depth is a generous 3 3/4″. The end stop on the steel bar helps stabilize the clamp in use and detaches to allow reversal of the screw jaw for spreading.

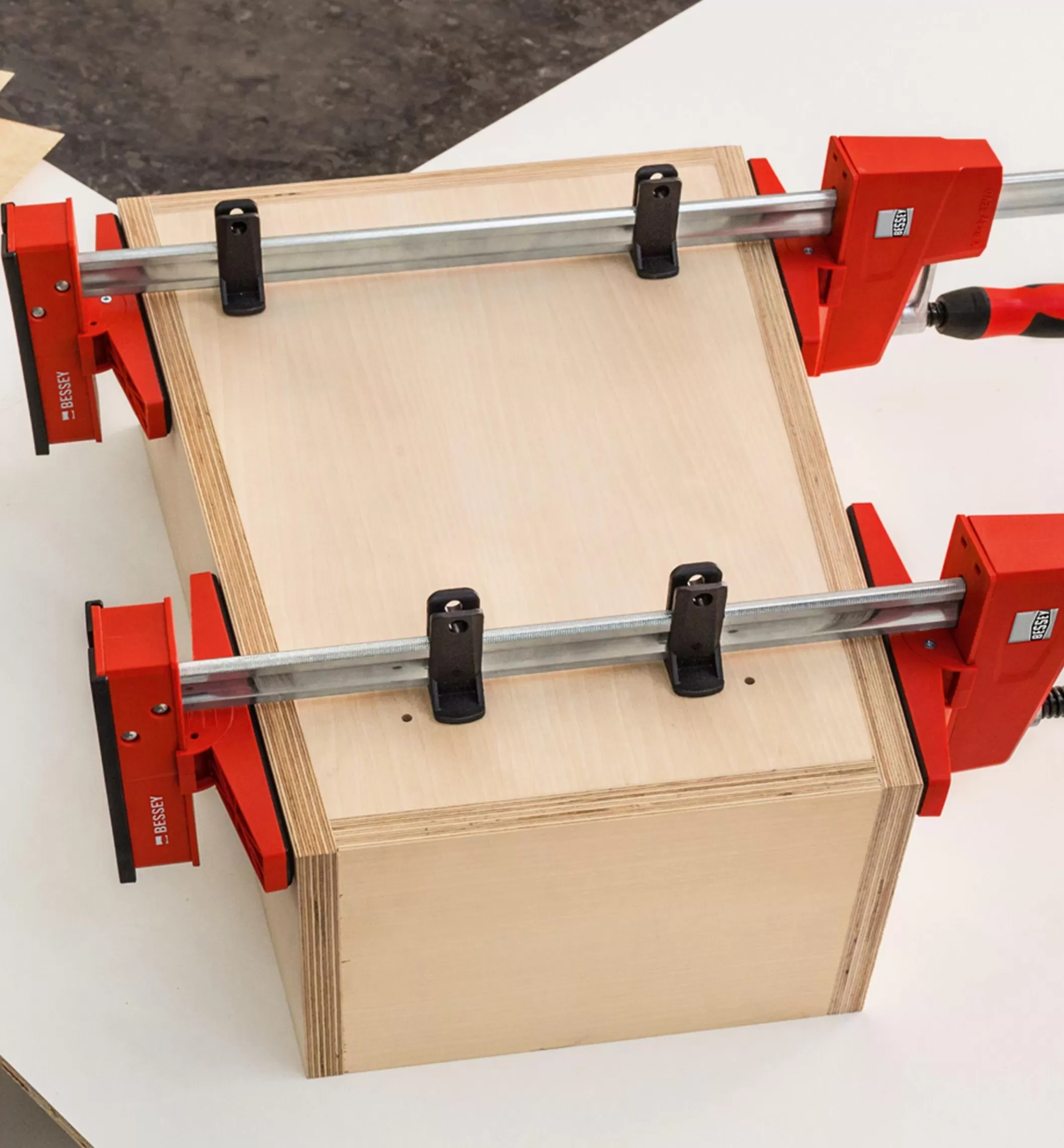

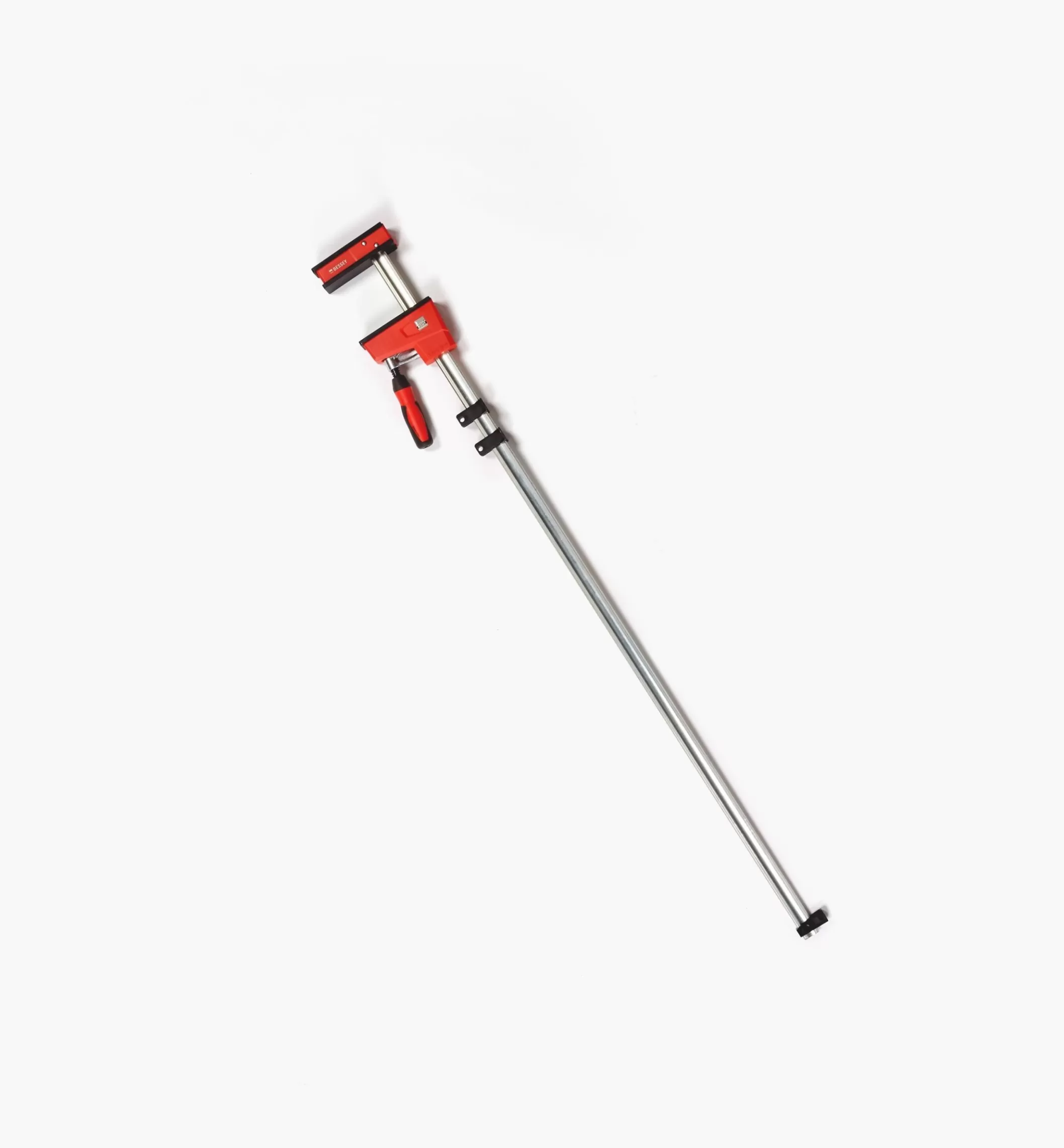

Two glue-resistant rail protection pads keep the rail from contacting the work, elevate the rail away from squeeze-out, and have through-holes for use with optional table clamps to temporarily affix the clamp to a workbench or other surface up to 2″ thick. Other available accessories include wide soft-face tilting jaws, a set of 90° clamping blocks, and an aluminum extender that allows two clamps to be joined end to end.

The internal steel frame allows a clamping force of up to 1700 lb and a working load limit of 2200 lb. Size given is the maximum clamping capacity.
