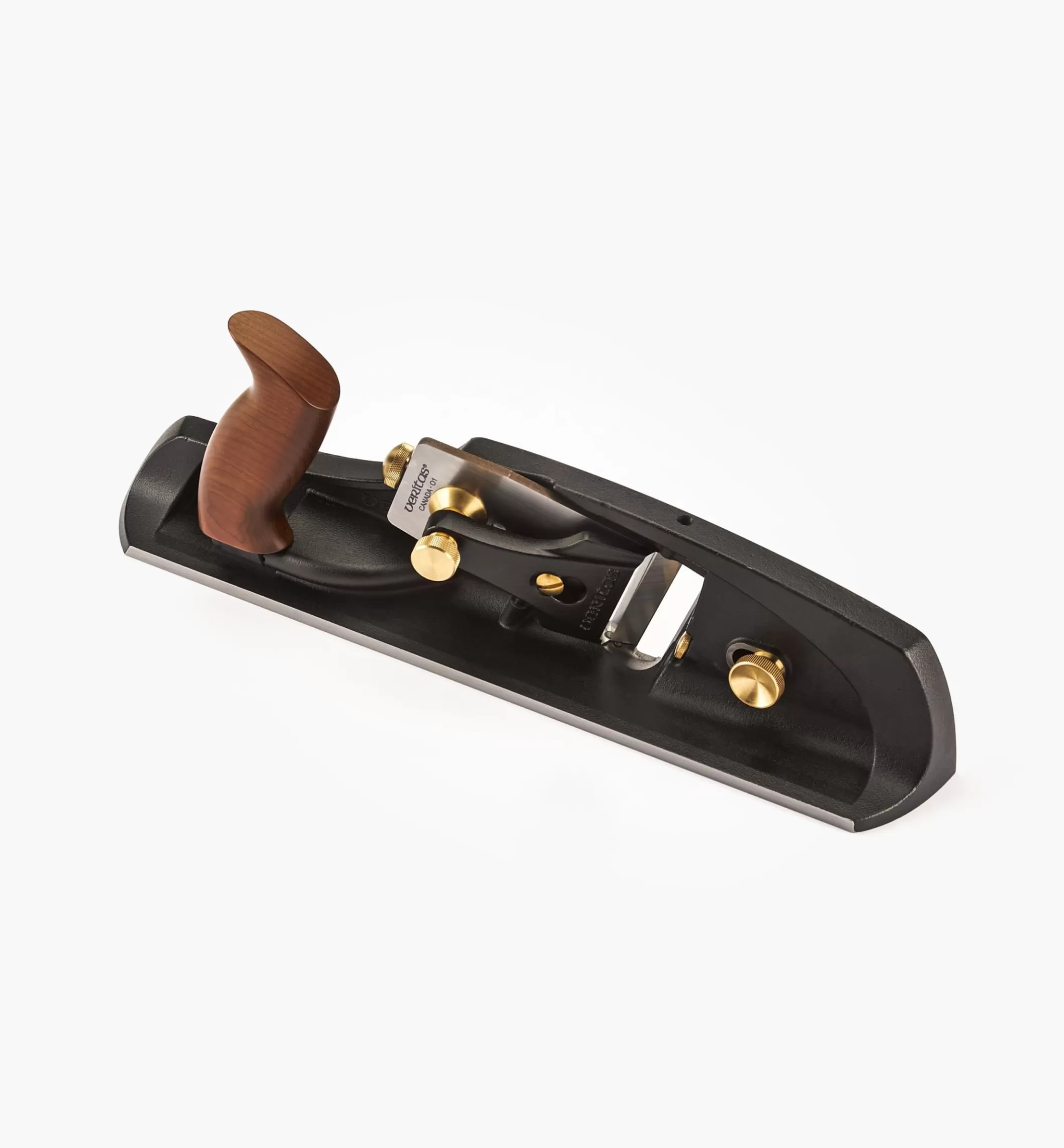

Shop Lee Valley Veritas Right-Hand Shooting Plane

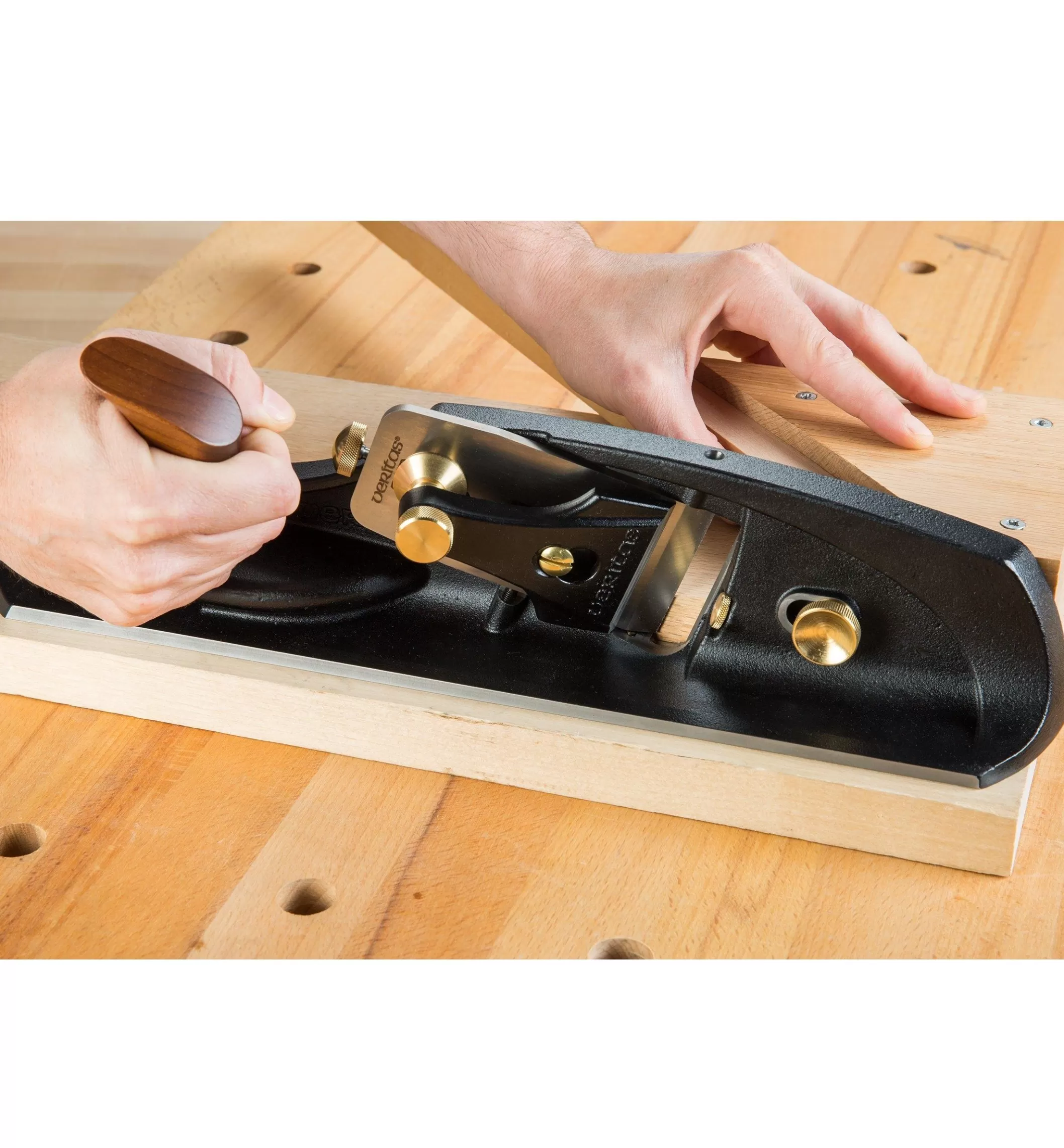

The mass of this plane, combined with its long base and low center of gravity, makes it both stable and effective. At 7 3/4 lb and just under 16″ long, it is a substantial plane; you will appreciate the authority it provides when shooting.

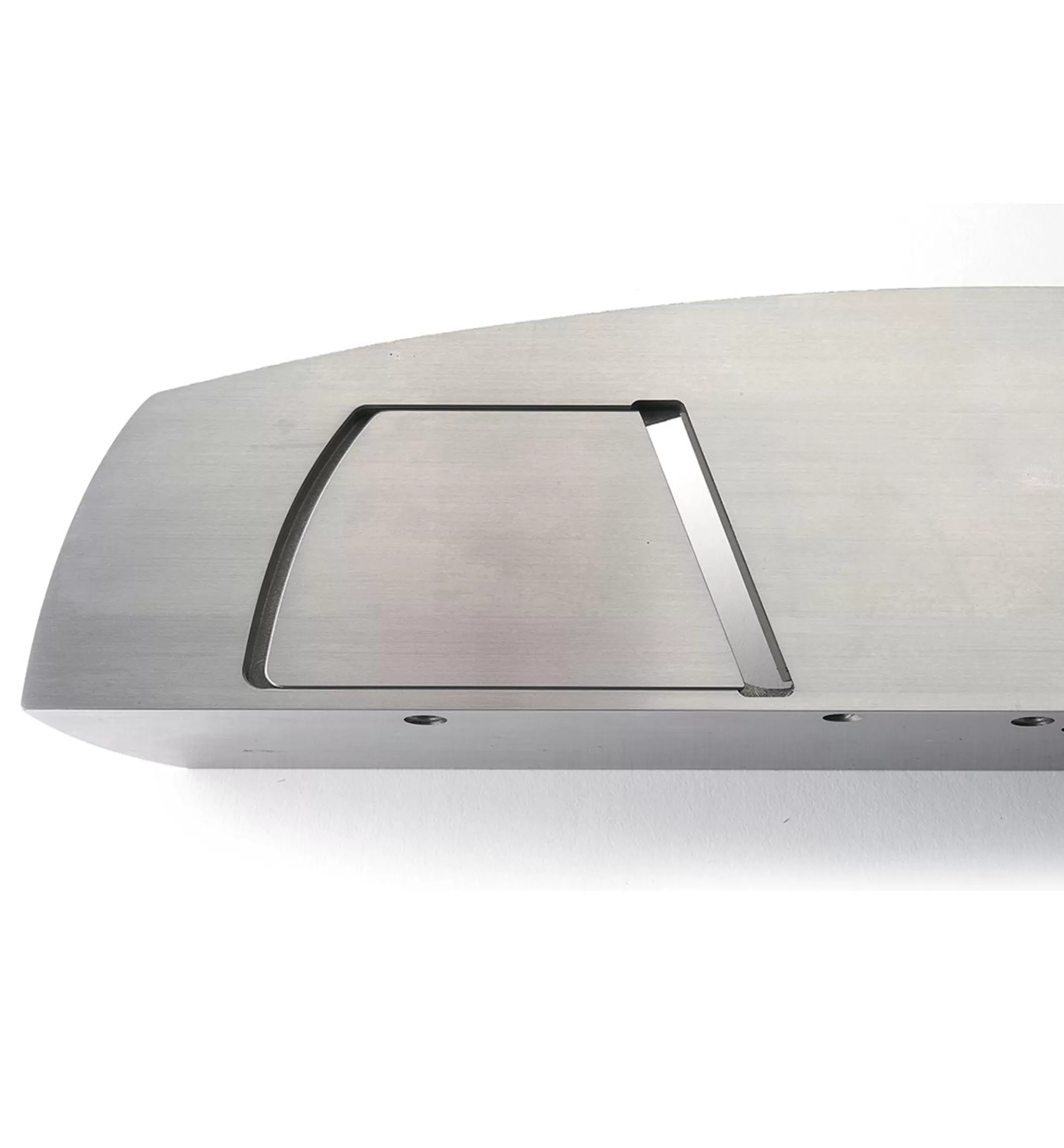

The body is fully stress-relieved, ductile cast iron, with a sole and running surface machined flat and square to one another; the 2 1/8″ wide running surface fits the classic Stanley #52 chute board. Three set screws let you compensate for slight inaccuracies in a wooden shooting board by adjusting the blade square to the workpiece.

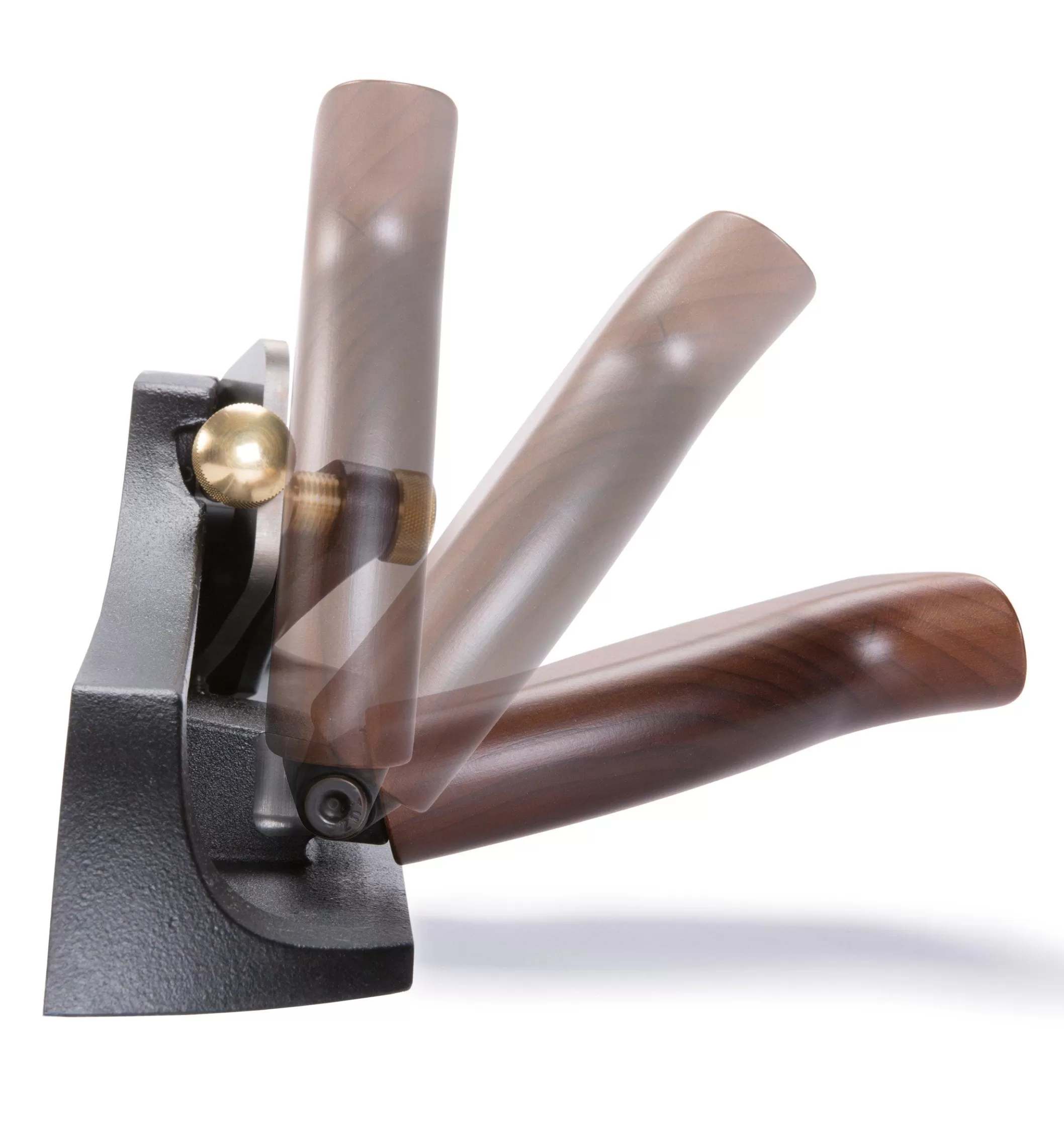

Loosening a brass locking knob allows you to adjust the mouth opening, while a stop-screw retains mouth settings and prevents contact between the blade and movable toe. You can set the adjustable rear tote at a comfortable angle for use with the sole upright or facing down.

A bevel-up plane, it has a bed skewed 20° to reduce cut resistance and make a shearing cut that leaves a clean finish on end grain. Combined with the 12° bed angle and 25° blade bevel, this yields an effective cutting angle of 35°.

Includes a lapped blade, made of either O1 or PM-V11 tool steel, which we find offer the best performance at low bevel angles. It uses the same 2 1/4″ wide blades as our other bevel-up planes. A Norris-style mechanism combines feed and lateral adjustments for easy, precise blade setting.

Also available in a left-hand version.

Made in Canada. Patented.
