Shop Lee Valley JessEm Mite-R-Excel II Miter Gauge With Micro-Adjuster

Sturdy, accurate and easy to set up and use, this miter gauge permits precise, repeatable angle and square cuts on a table saw.

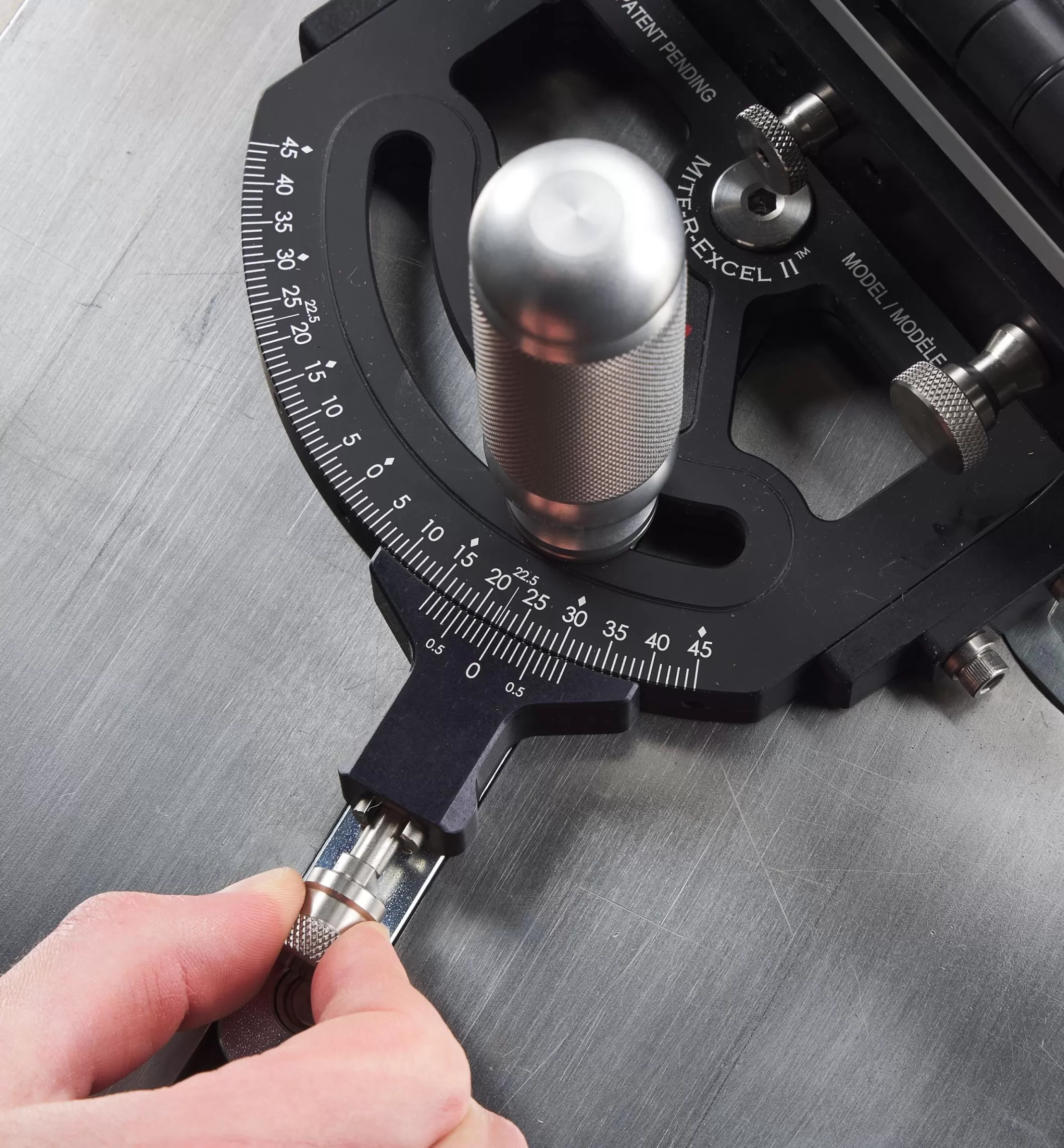

Made of CNC-machined aluminum with stainless-steel parts and a rolled-steel guide bar, it has a laser-etched protractor head with detents at 0°, 15°, 22.5°, 30° and 45°. The spring-loaded indexing pin lets you quickly set any angle between the detents on either side of 0°, and the lower vernier scale lets you fine-tune the setting in 1/10° increments.

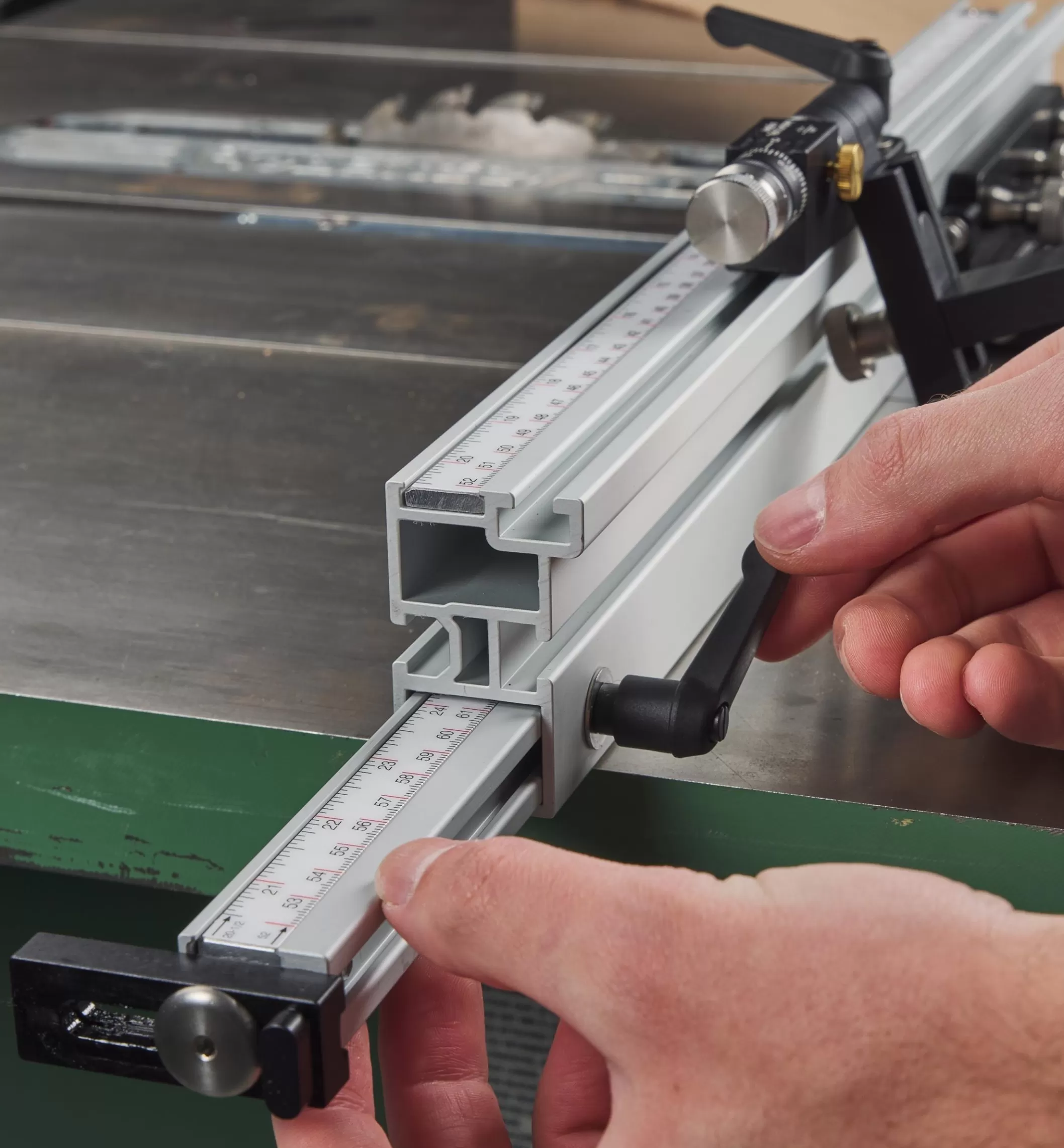

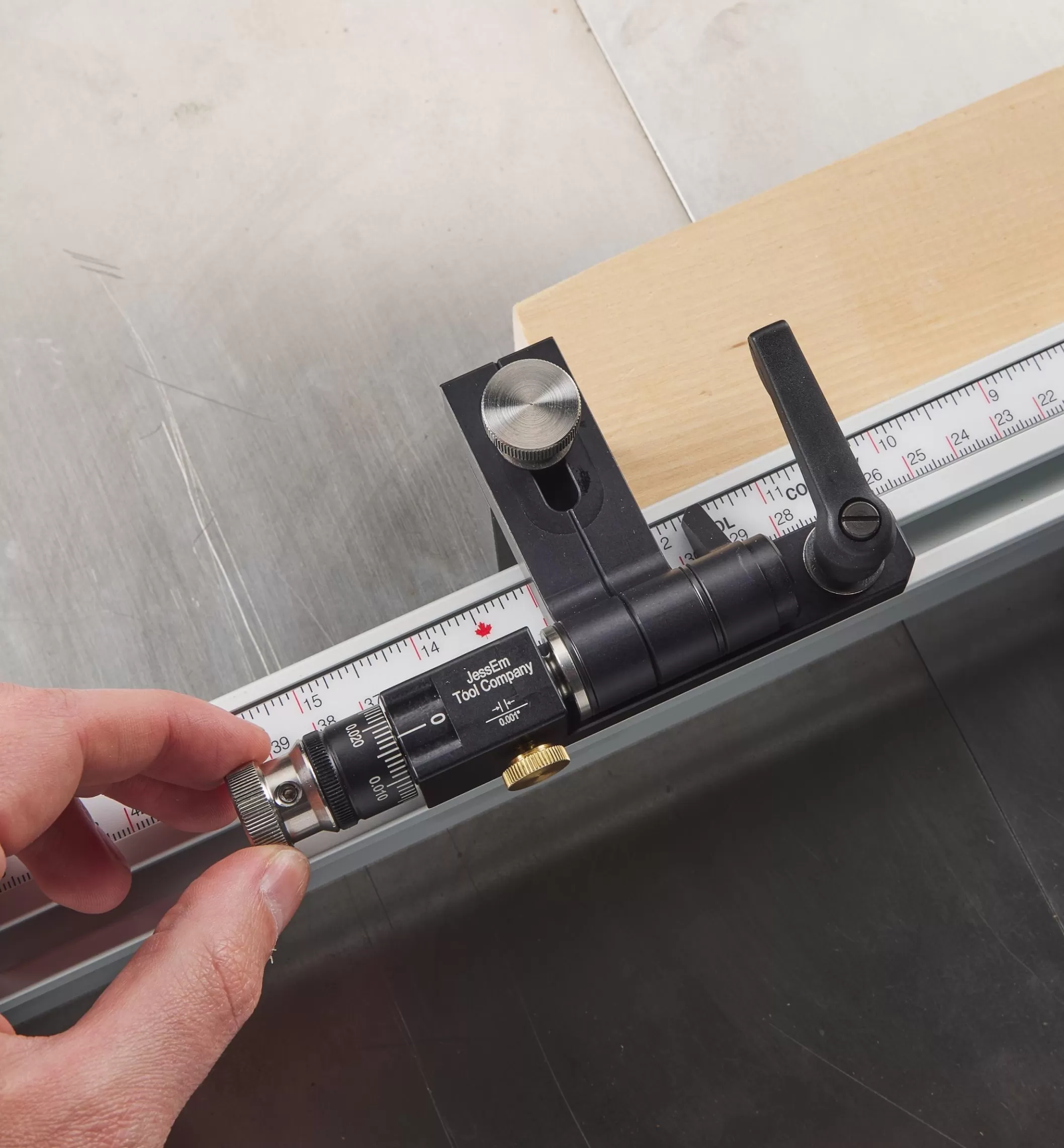

The 20″ long extruded fence extends to 36″. It has a right-to-left reading Imperial/metric scale and accepts a user-made sacrificial sub-fence up to 3/4″ thick (mounting hardware included). For precise, repeatable stock positioning, it has a flip stop that permits up to 3/4″ of adjustment and has a micro-adjuster that fine-tunes the stop position 1/32″ per turn.

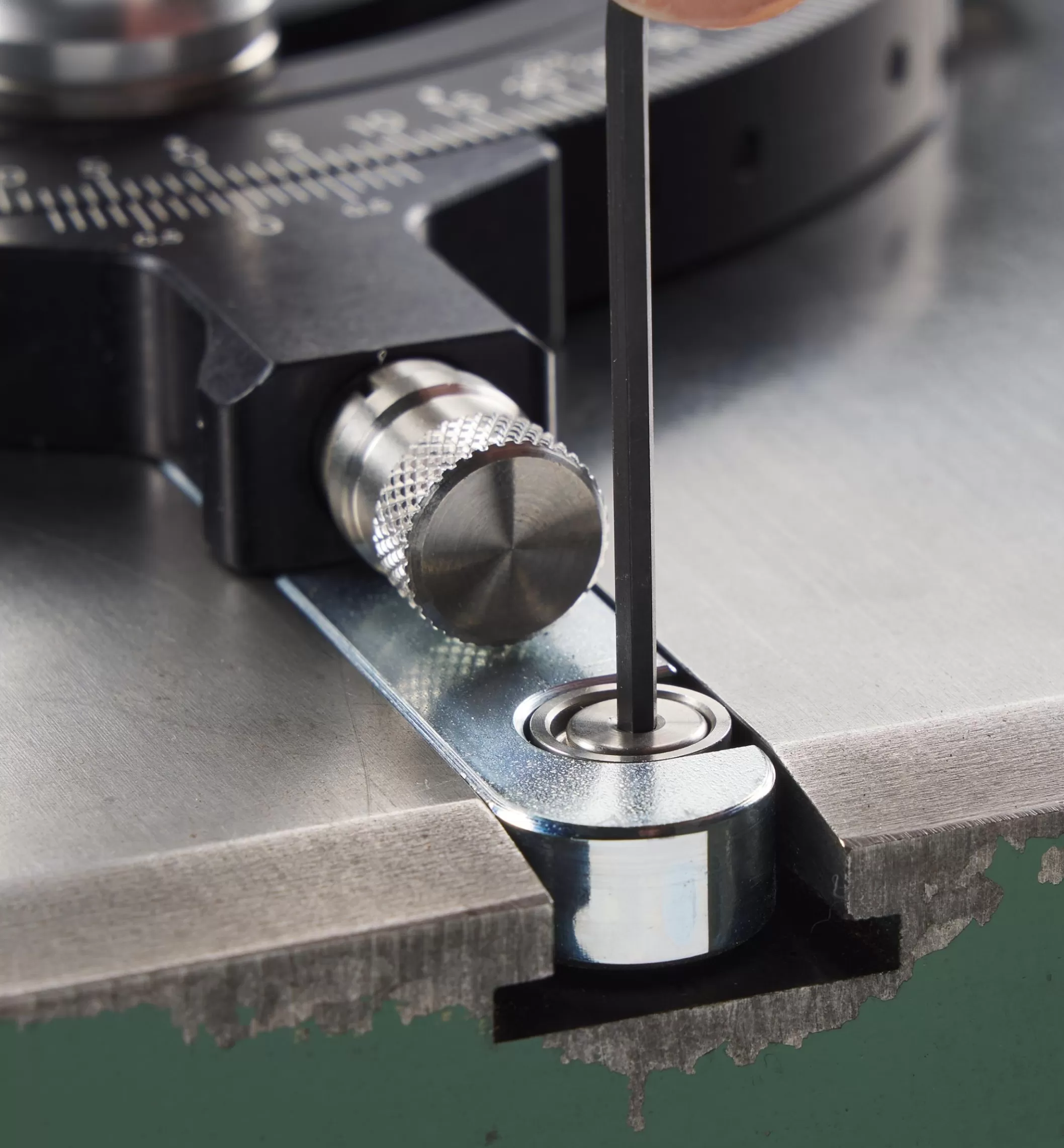

The gauge mounts in a standard 3/4″ wide by 3/8″ deep miter slot and has bar snugger screws in the guide bar to permit low-friction travel and remove lateral play within the slot.

Assembly required.

Made in Canada from high-quality, precision-machined materials for years of dependable service.
