Outlet Lee Valley Quick-Connect Fittings

For use in material at least 19mm (3/4″) thick, these knock-down fittings let you make strong, easy-to-assemble butt joints. Install the 12mm (15/32″) diameter threaded insert nut and 37.5mm (1 1/2″) long dowel pin on one side of the joint, and the 15mm (19/32″) diameter cross dowel on the other.

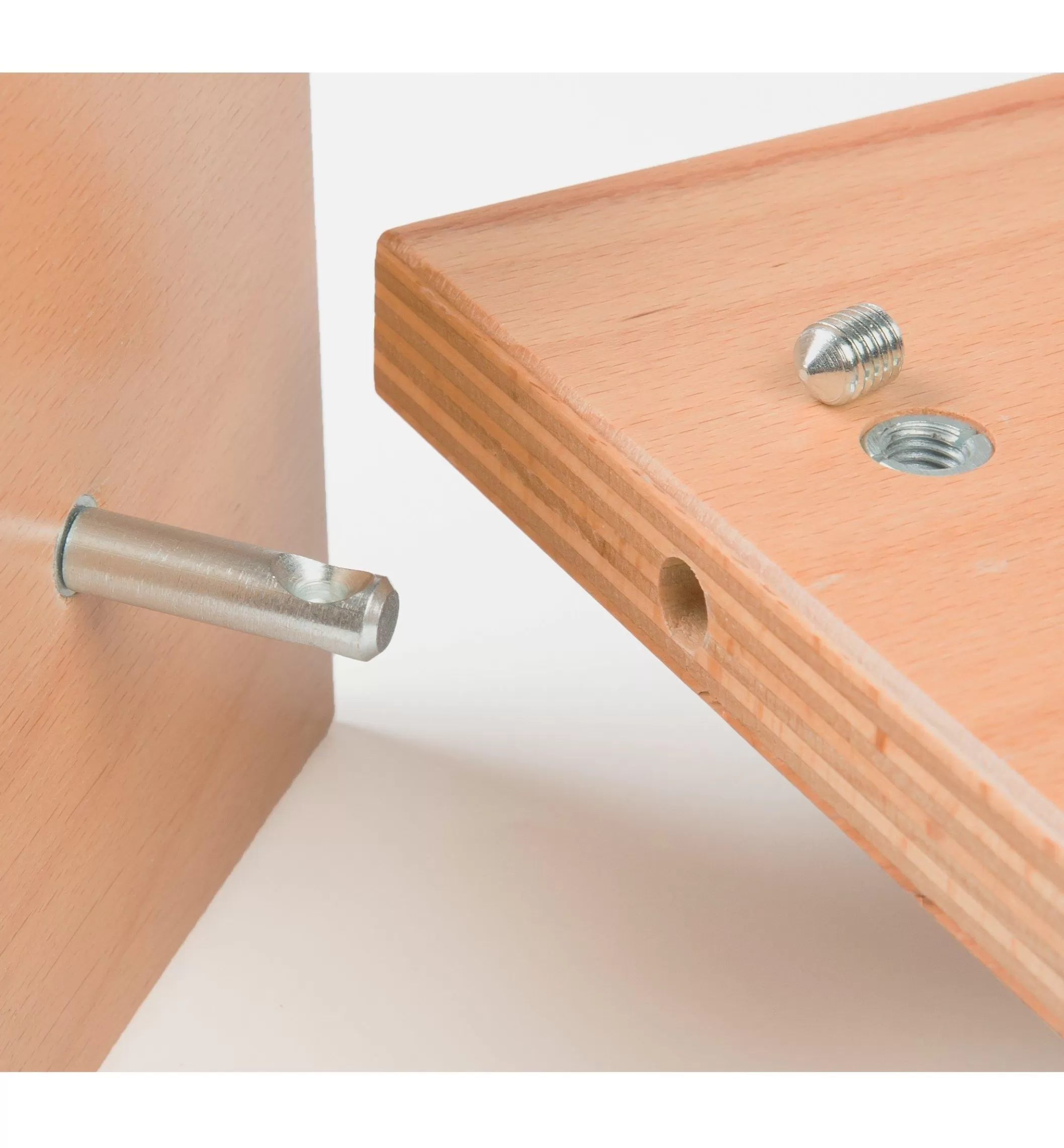

When you assemble the joint, the dowel pin fits into a through hole in the cross dowel and is locked in place with an included set screw. A sloped recess in the dowel pin draws the joint tight when you tighten the set screw. The dowel pin’s tapered end makes aligning the cross dowel much easier.

Sold as a set of four fittings.
