New Lee Valley Set Of 3 Veritas Imperial Edge Rules

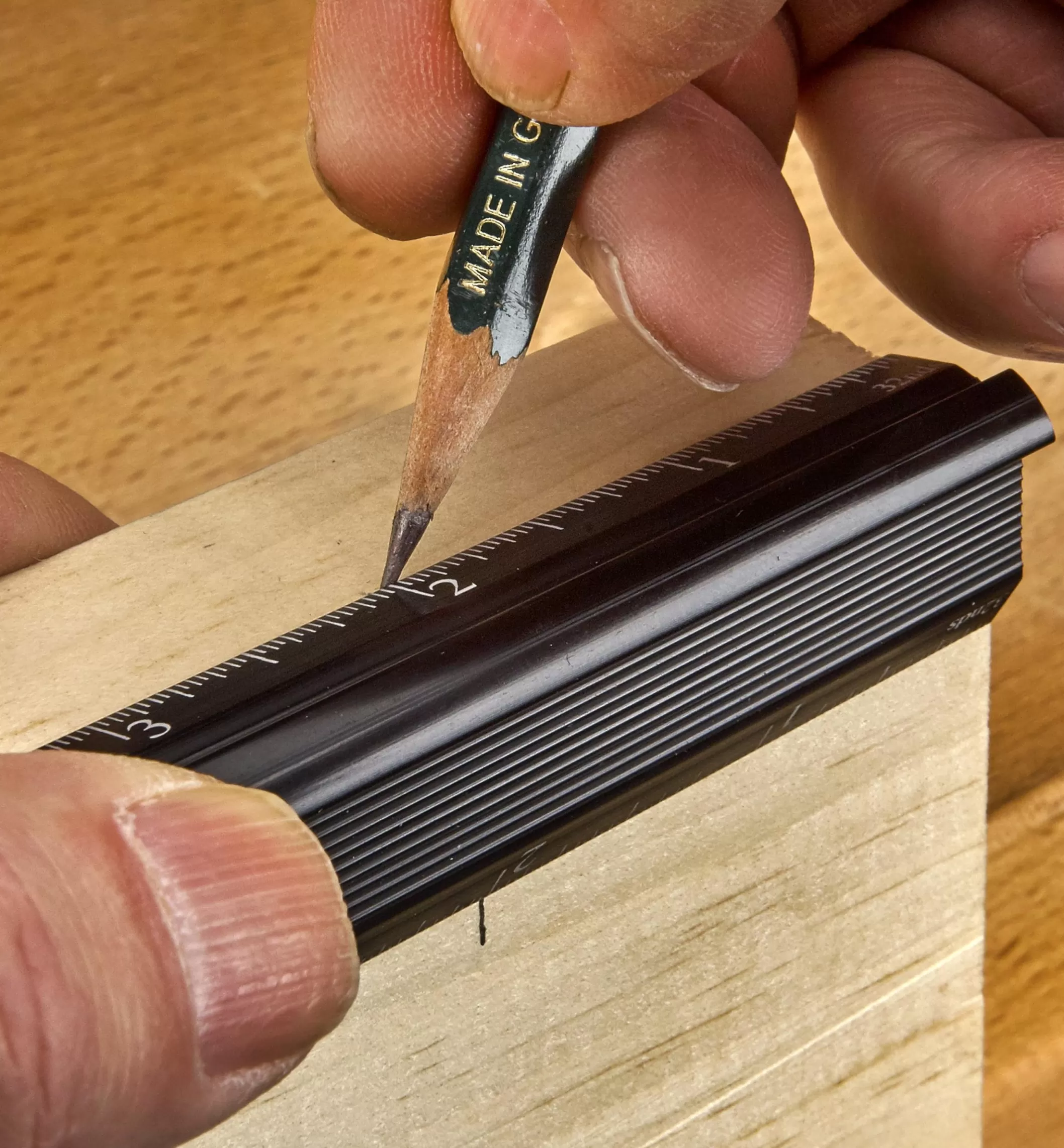

The great advantage of this style of rule is that it saddles the edge of a workpiece, making it easy to hold accurately in position when measuring and marking layout lines.

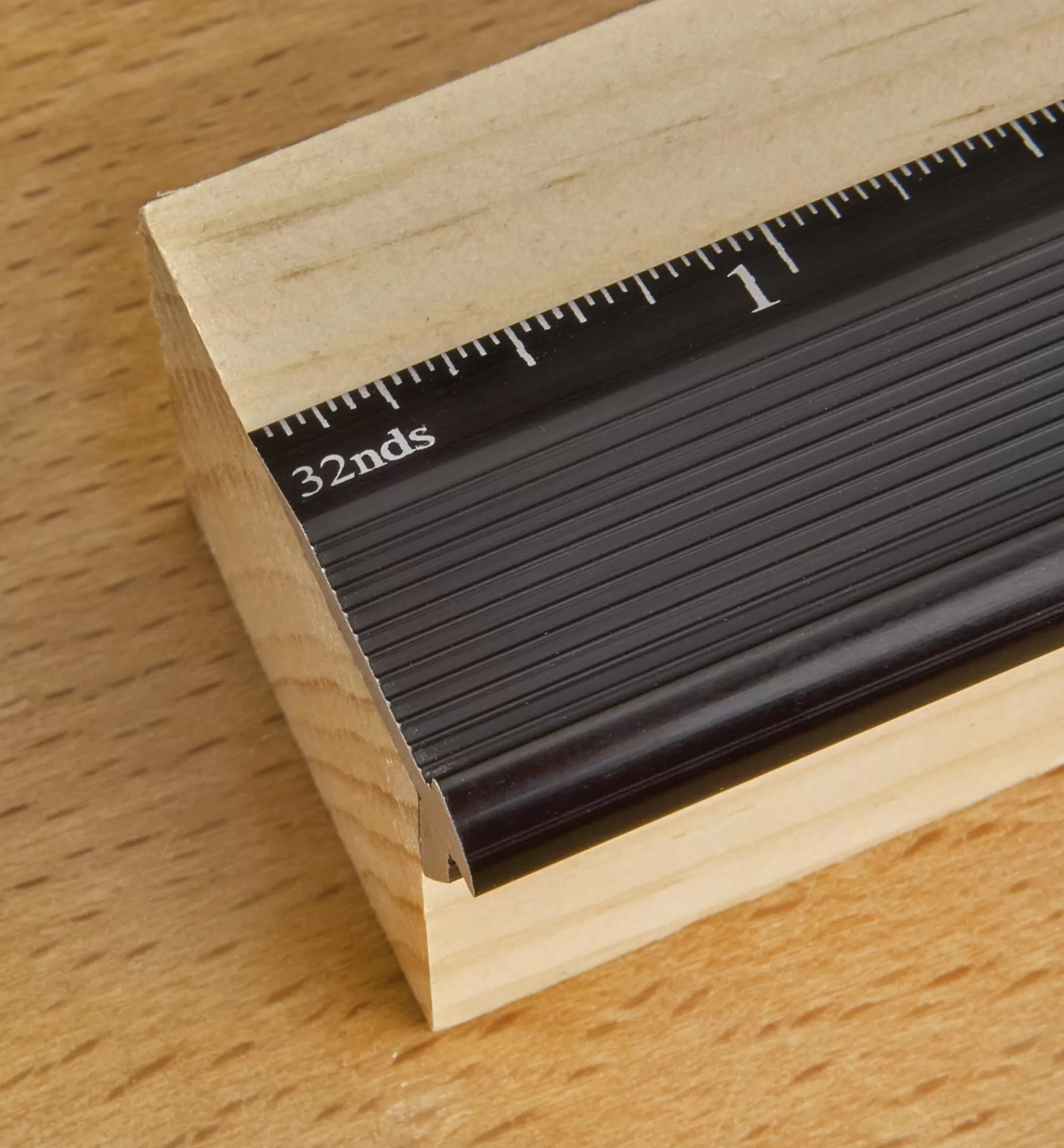

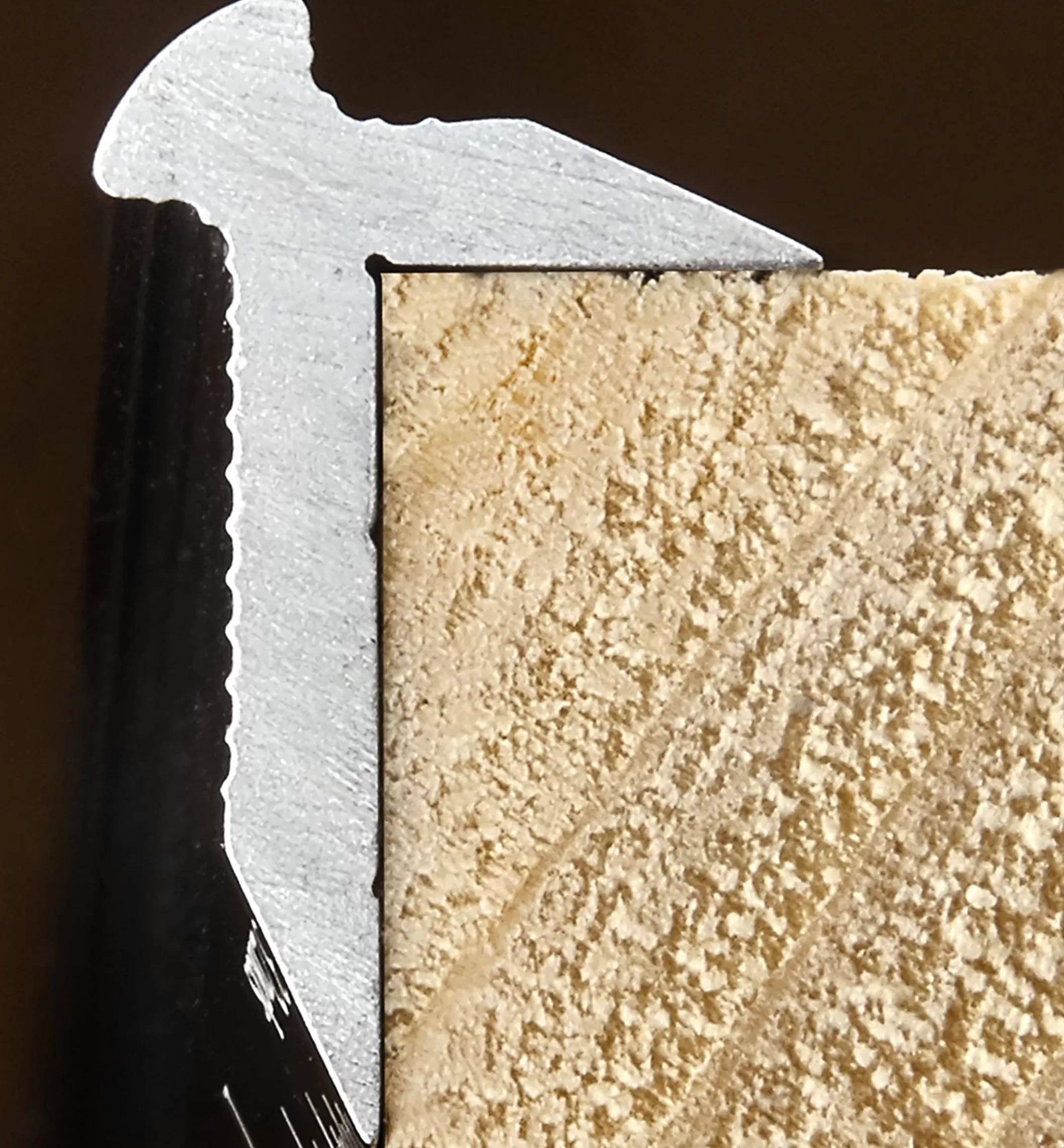

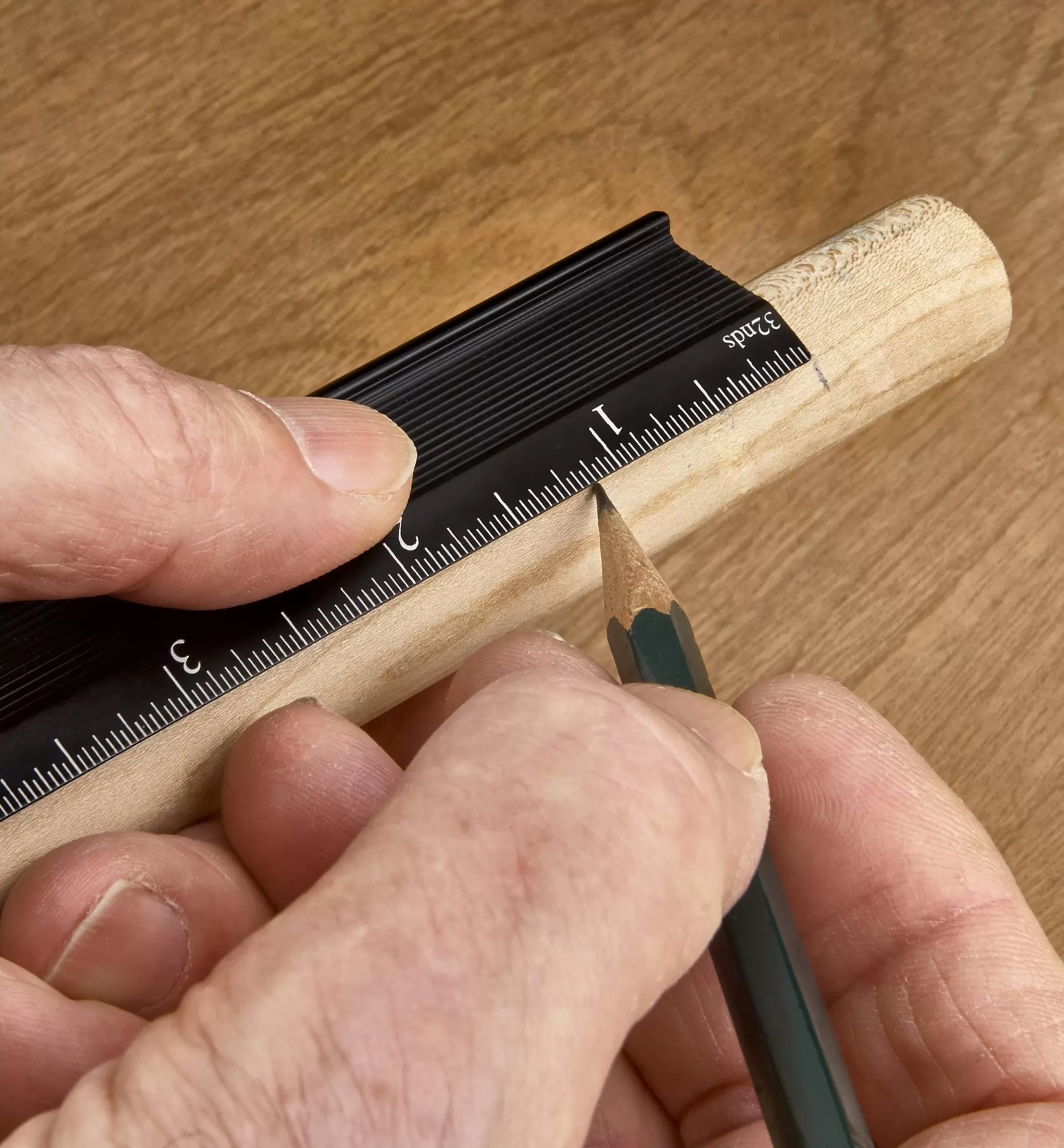

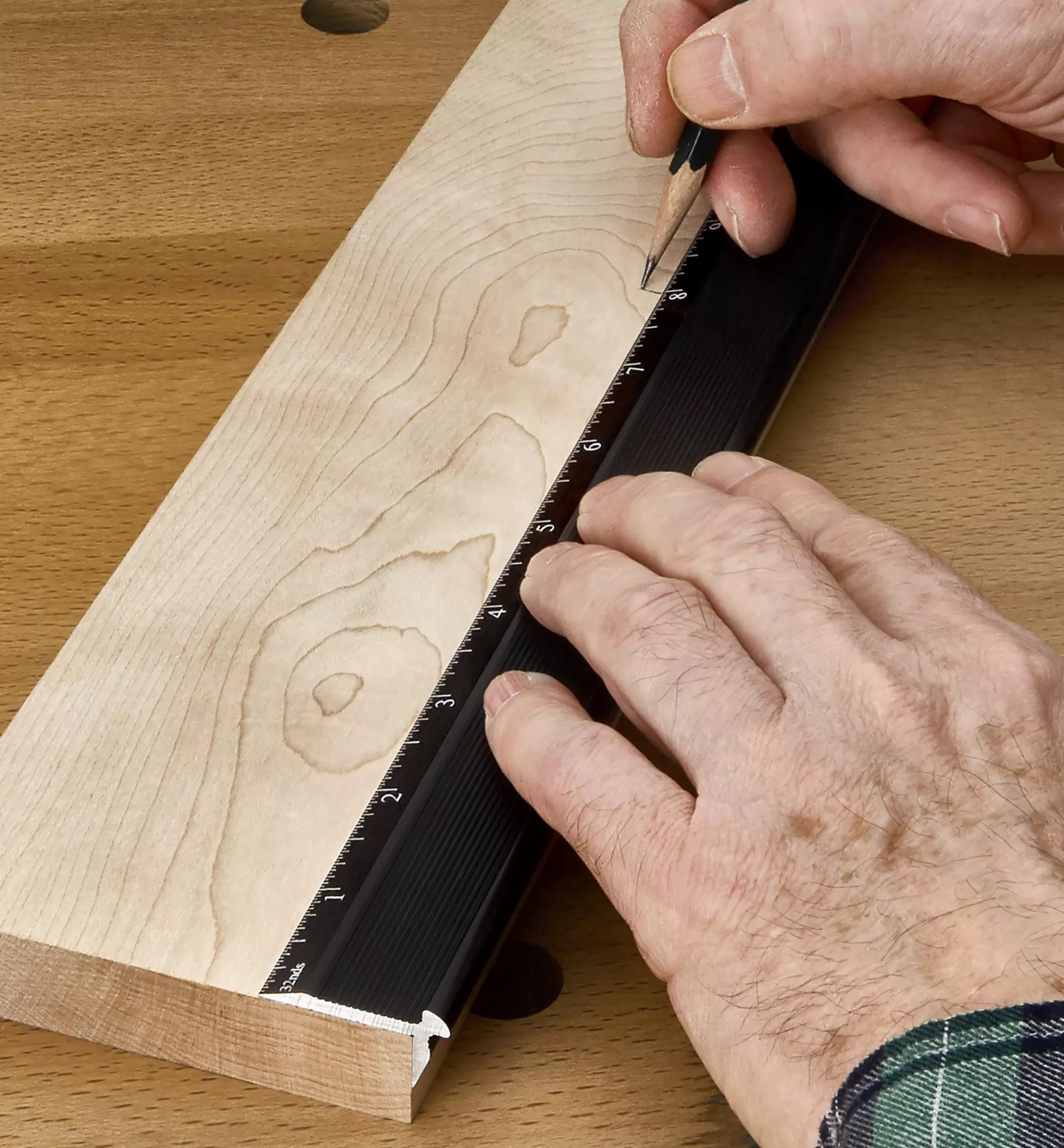

Ours have an acute interior angle to ensure that they seat well, even over saw whiskers, and bevelled edges with etched graduations to minimize parallax errors. This design also simplifies transfer of perpendicular lines from face to edge, and is particularly convenient when holding and marking off dowel rod stock. The wide leg on the L-shaped cross-section is for face work, while the shorter leg is for narrow stock and edge work.

The Imperial set includes 6″, 12″ and 18″ lengths. The smaller rules have faces with depths of 3/4″ and 3/8″; the 18″ rule has face depths of 1″ and 7/16″. The face of the wide leg reads left to right, while the short leg reads right to left – making it easy to cross-reference when transferring marks from face to edge.

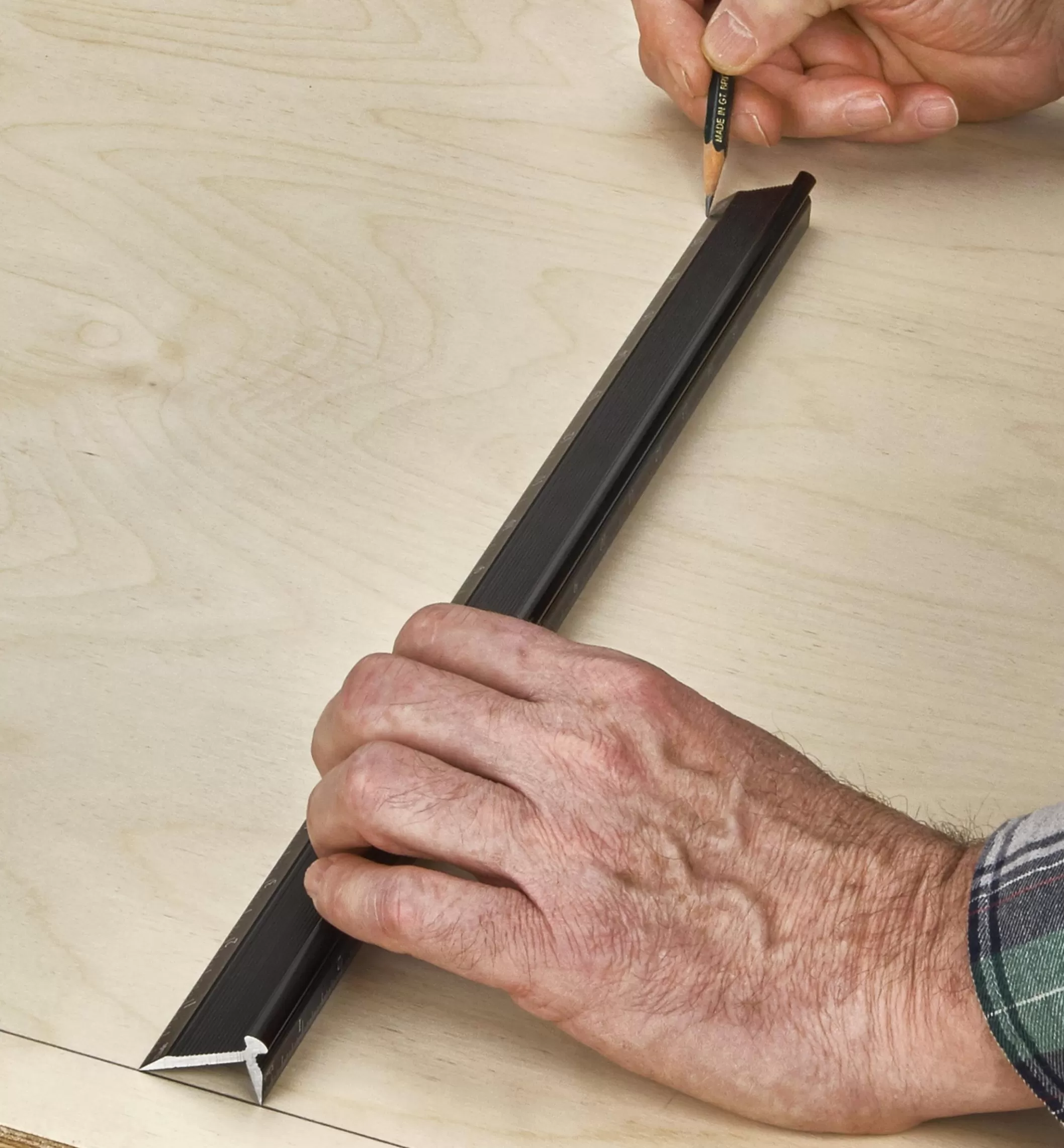

You can also use the rules on a flat surface – and, since the shape makes them much easier to pick up than a flat rule, you may find yourself reaching for them as your go-to rules. The 6″ rule is small enough to fit comfortably in a pocket.

Made in Canada from aluminum with a black anodized finish.

Rules are also available individually.
