New Lee Valley Kreg Foreman Pocket-Hole Machine

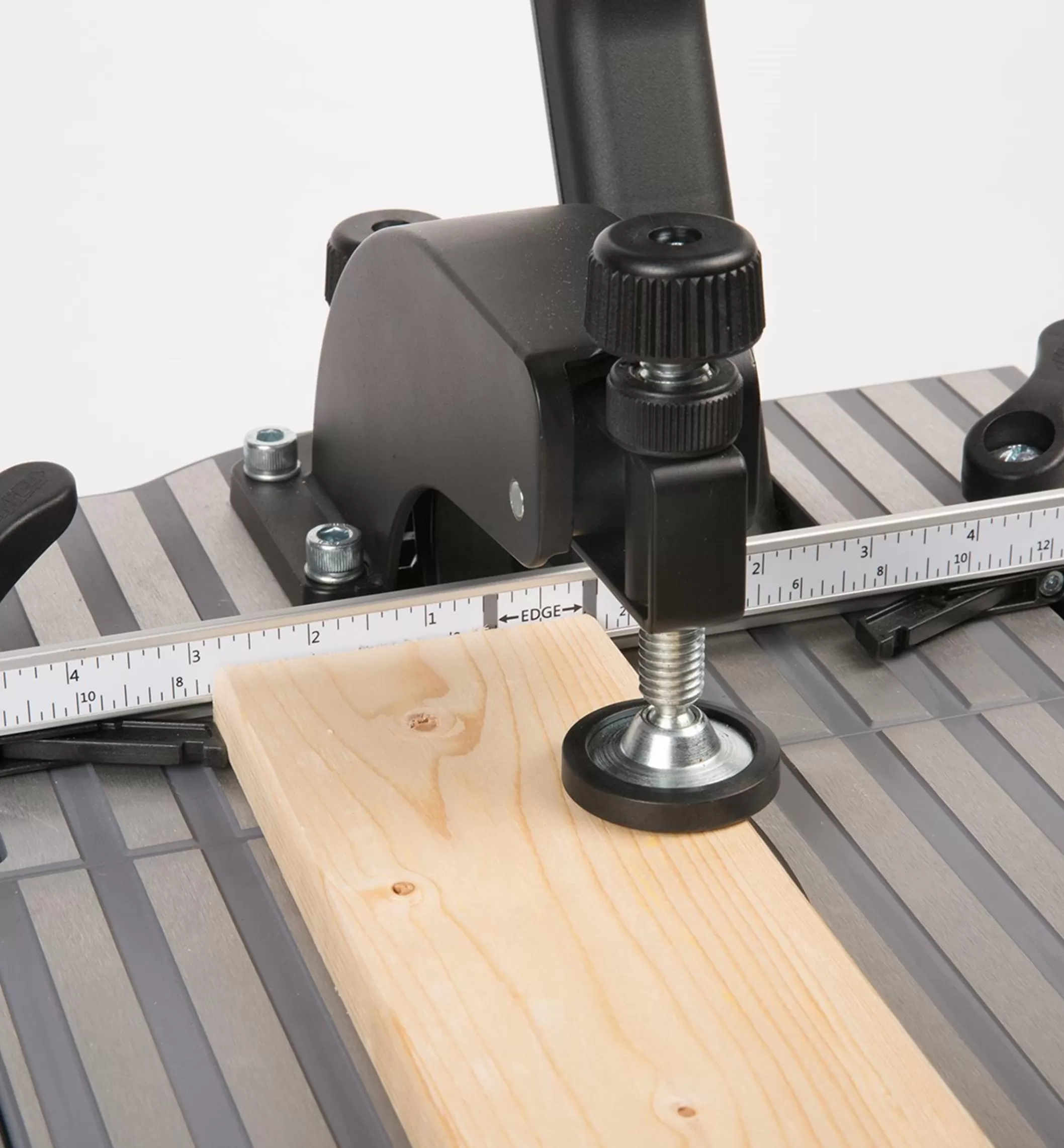

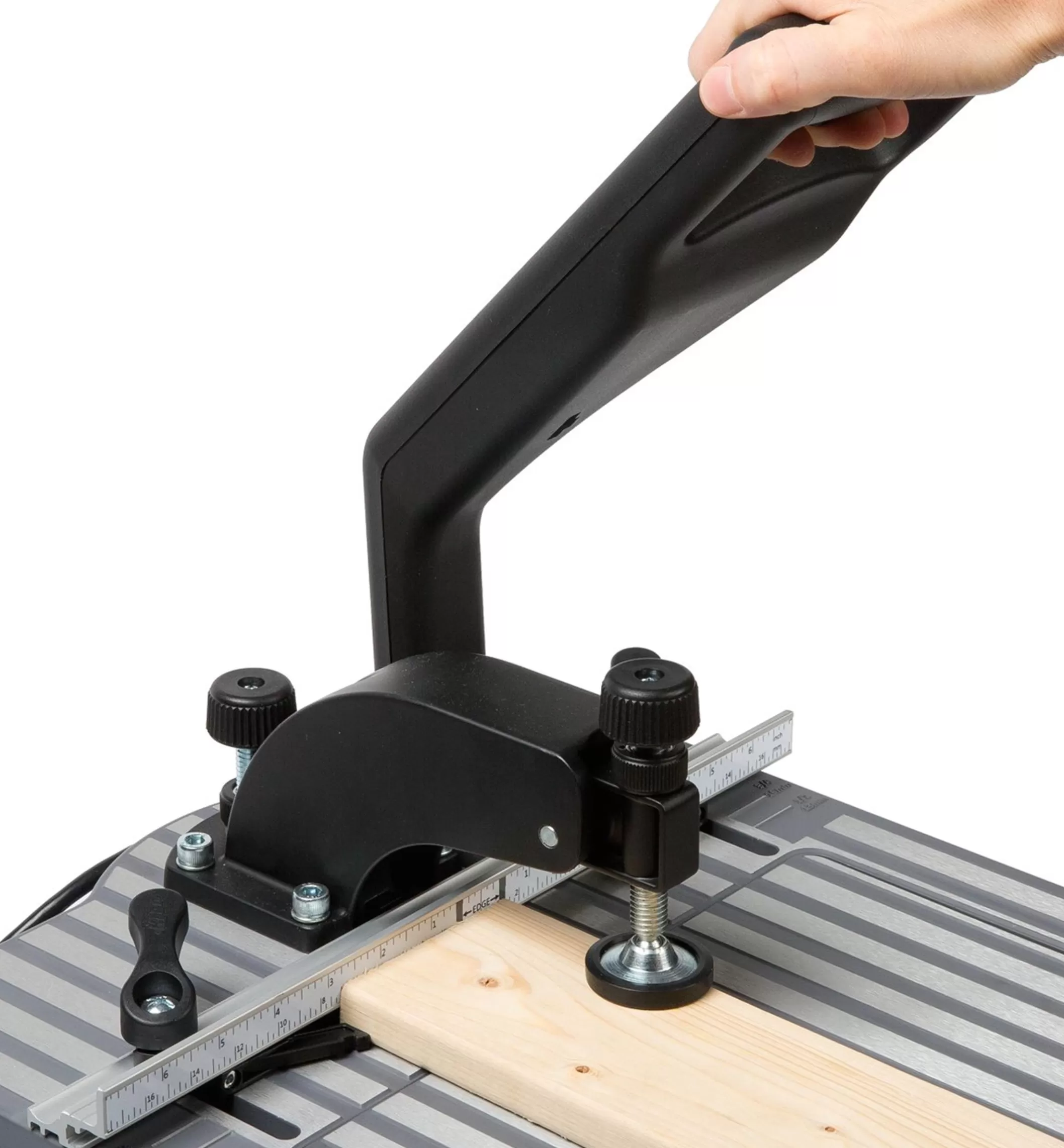

This professional-grade pocket-hole machine combines a clamping table, a power drill and a fence into a convenient joinery work station. An excellent choice for anyone who is involved with production work or has much custom pocket-hole work to perform, it is easy to set up and reliable in use, speeding build time while improving joint accuracy and repeatability. Plunging the overhead arm automatically starts the drill, clamps the work and advances the drill bit into the stock at the optimum angle, depth and position, all in one synchronized operation. Adjusting the position of the extruded aluminum fence lets you accommodate workpieces of various thicknesses, with markings cast into the table surface for easy reference. Two spring-loaded position stops let you accurately locate the work against the fence. The hold-down clamp has an adjustable foot that pivots to accommodate irregular surfaces.

The 14″ × 23 3/4″ machine table is cast aluminum; the sturdy base is molded plastic. A hinged panel in the table surface lets you access the quick-change drill chuck for bit changes and an interior storage space for accessories. The machine also has a 1 1/4″ diameter vacuum port for connection to a dust-collection system. The system comes with a 3/8″ step drill bit for workpieces between 1/2″ and 1 1/2″ thick, a 6″ #2 square-recess driver bit, a depth-setting guide block and instructions.

Additional bits, including the Kreg Micro-Pocket (for stock 1/2″ to 3/4″ thick) and a heavy-duty bit (for stock over 1 1/2″ thick) are available separately.

At less than 20 lb, the unit is easy to transport to a job site, and mounting holes at the corners of the base allow it to be bolted down for permanent workshop installation. CUL/UL certified. An outstanding pocket-hole joinery system for professionals and hobbyists alike.
