New Lee Valley Adjustable Cabinet Hangers

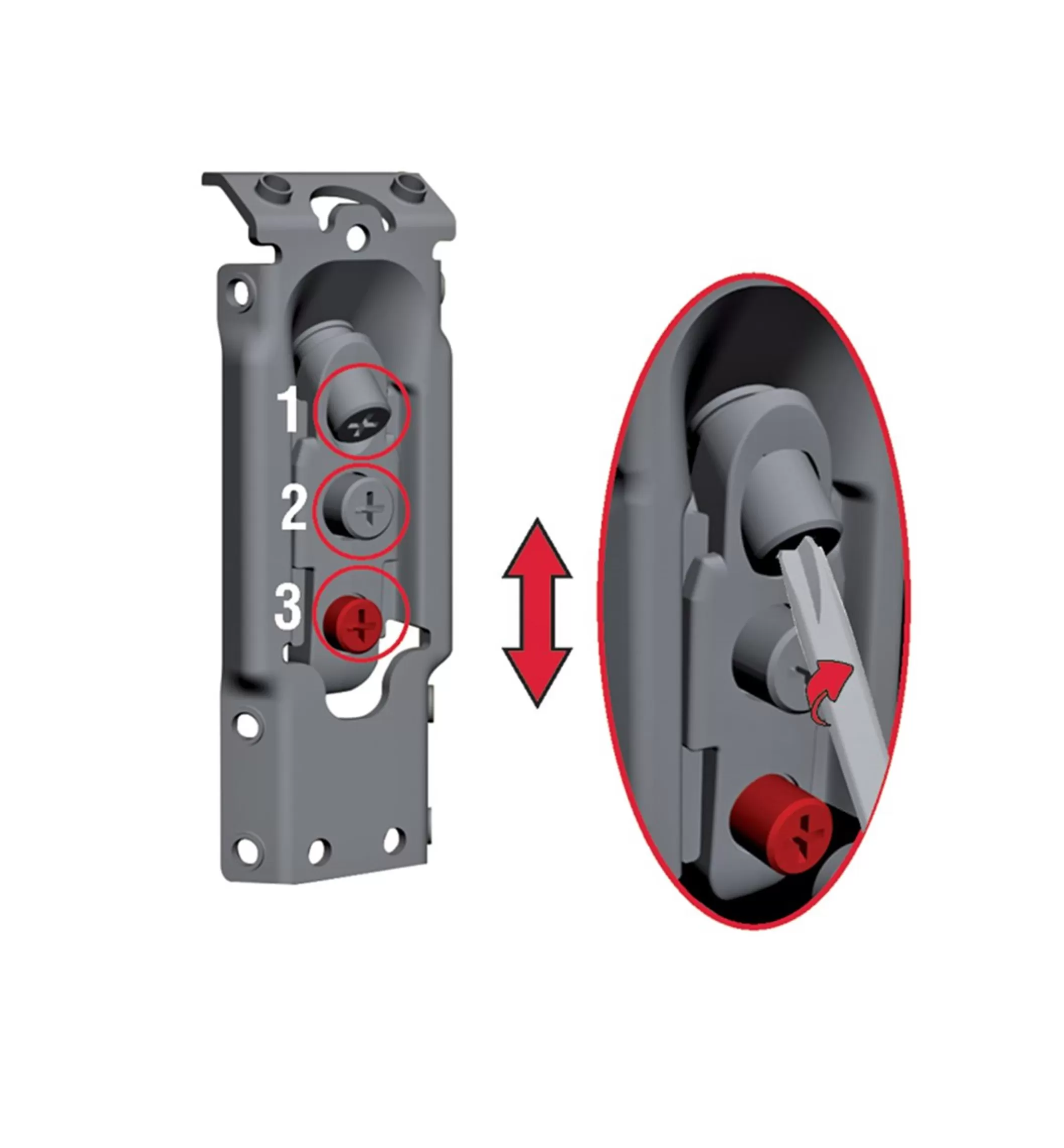

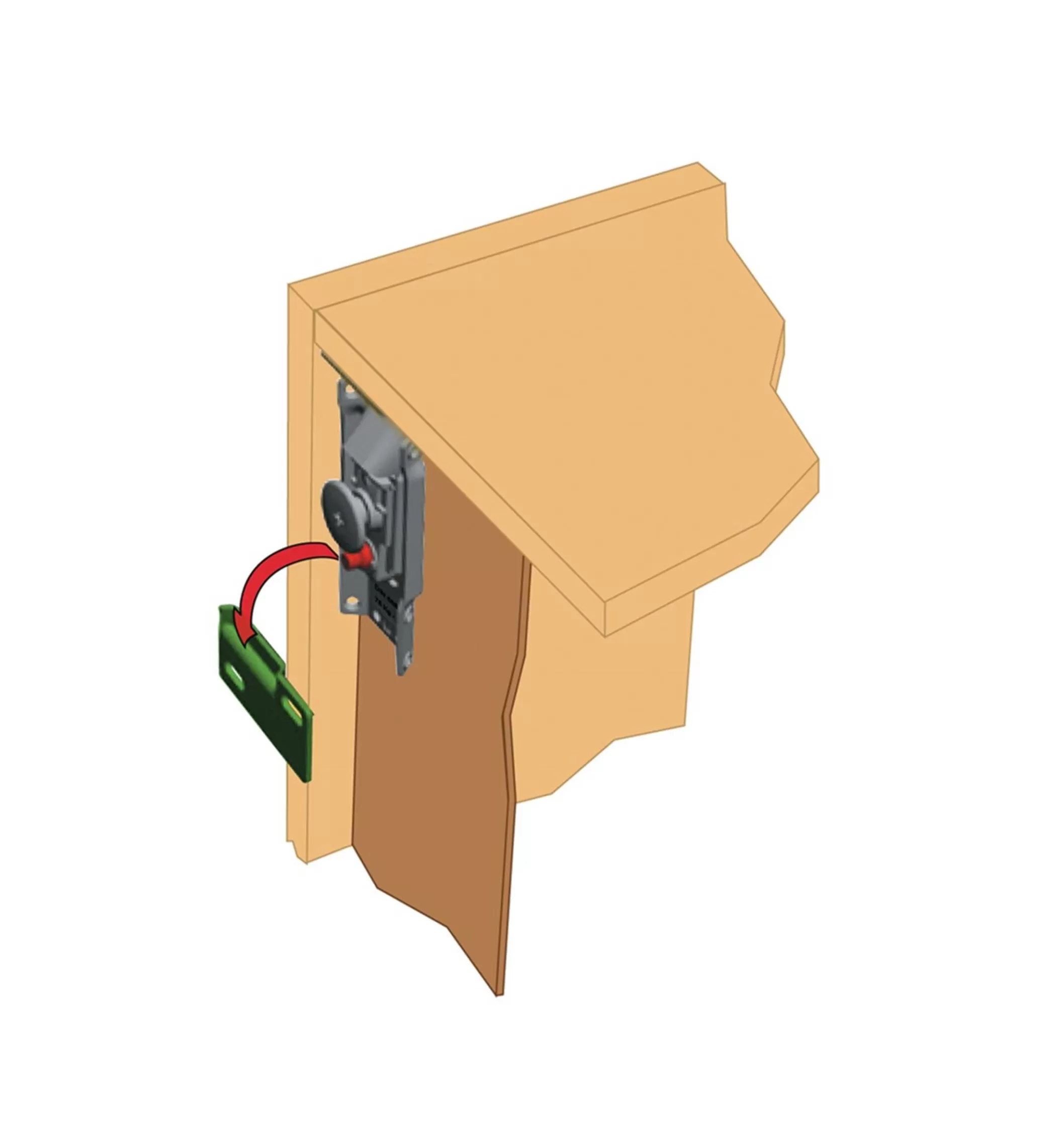

Easy to install, these wall-mount steel cabinet hangers allow a range of vertical and tilt adjustment (up to 1/2″) without having to remove any part of the cabinet assembly. Two hangers mounted on the back of the cabinet seat securely in channels in the included wall-mounting plates. Two small slots (approximately 1/2″ × 2 1/16″) cut into the rear cabinet panel permit access to the positioning mechanisms, which are adjusted independently using a #2 Phillips or POZIDRIV bit (not included).

Included low-profile plastic caps press-fit in place, concealing the access slots. The hangers can also be locked to prevent the cabinet from being accidentally dislodged from the wall. Supplied in sets of two hangers (3 7/8″ × 1 7/8″ overall), two mounting plates and two concealer caps. Each hanger supports up to 75kg/165 lb.
