Hot Lee Valley Veritas Small Drill-Press Table & Fence

While drill-press tables are nothing new in metalworking shops, it’s surprising they haven’t been more widely adopted by woodworkers, as they bring improved accuracy, safety and convenience to a range of tasks.

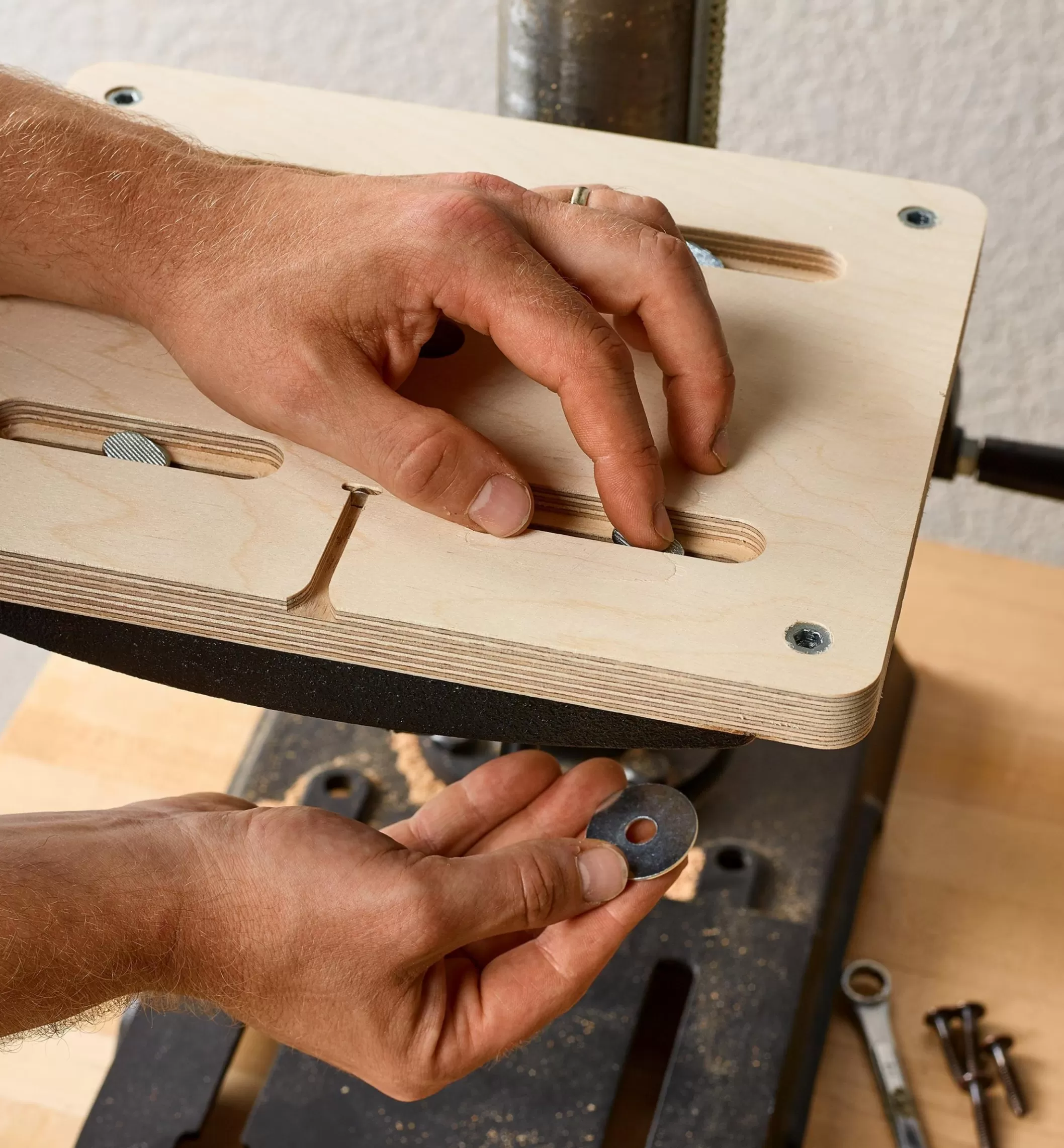

We designed ours to be compatible with most major brands of drill presses without modification. This table and fence set fits any drill press with a swing of 12″ or greater (6″ from bit to column) and comes supplied with all mounting hardware needed for installation in either through-slots or blind T-slots.

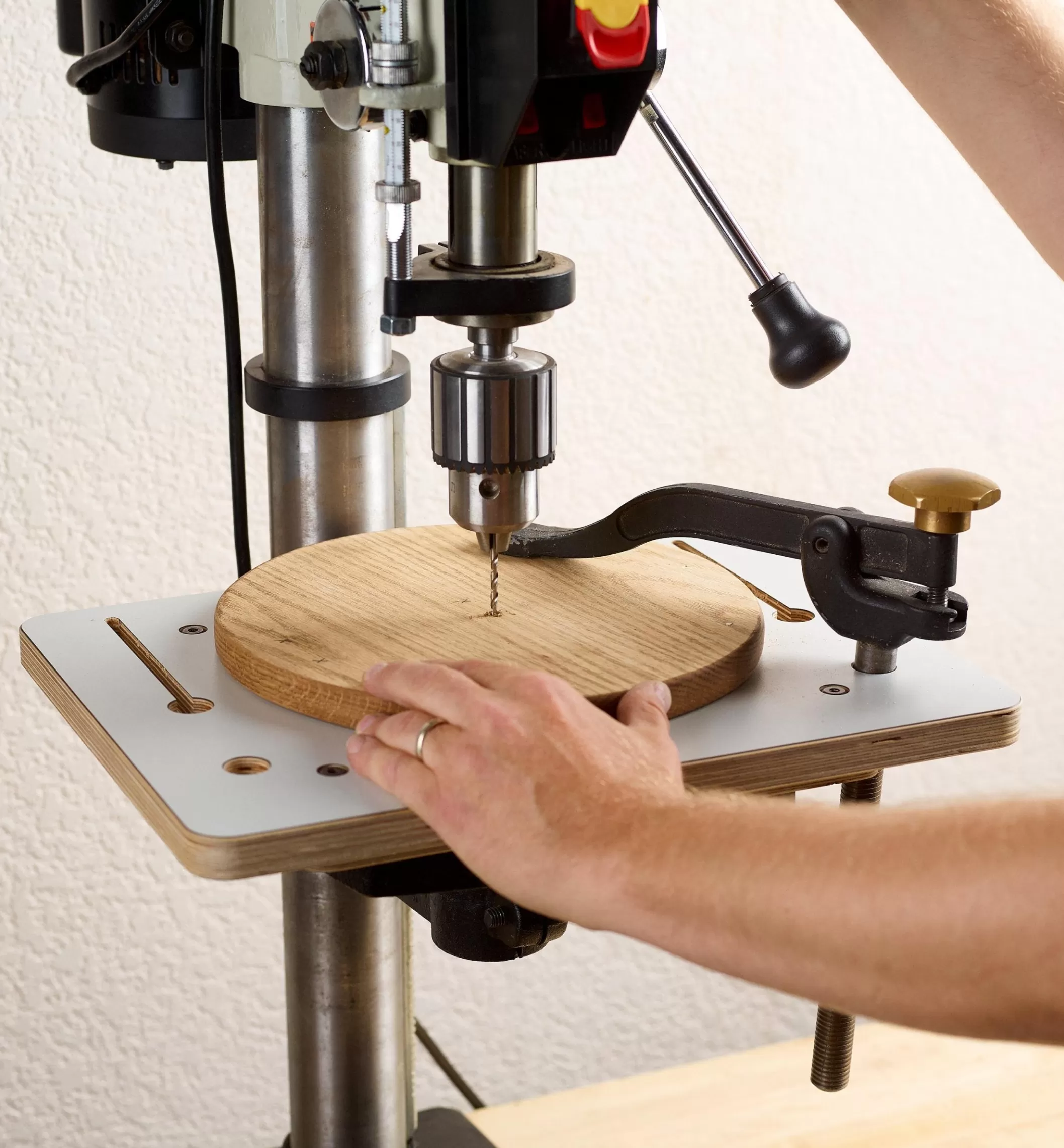

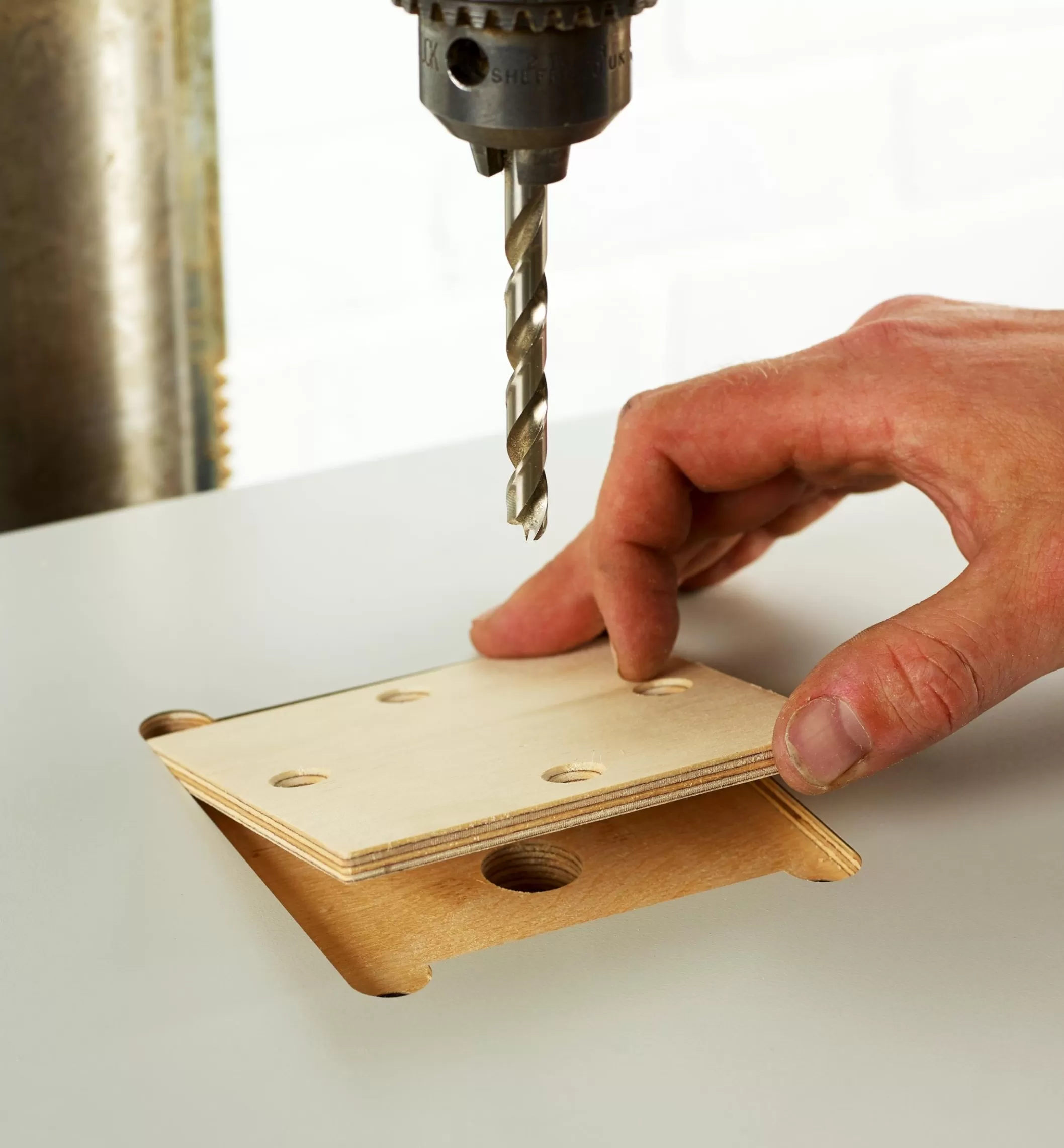

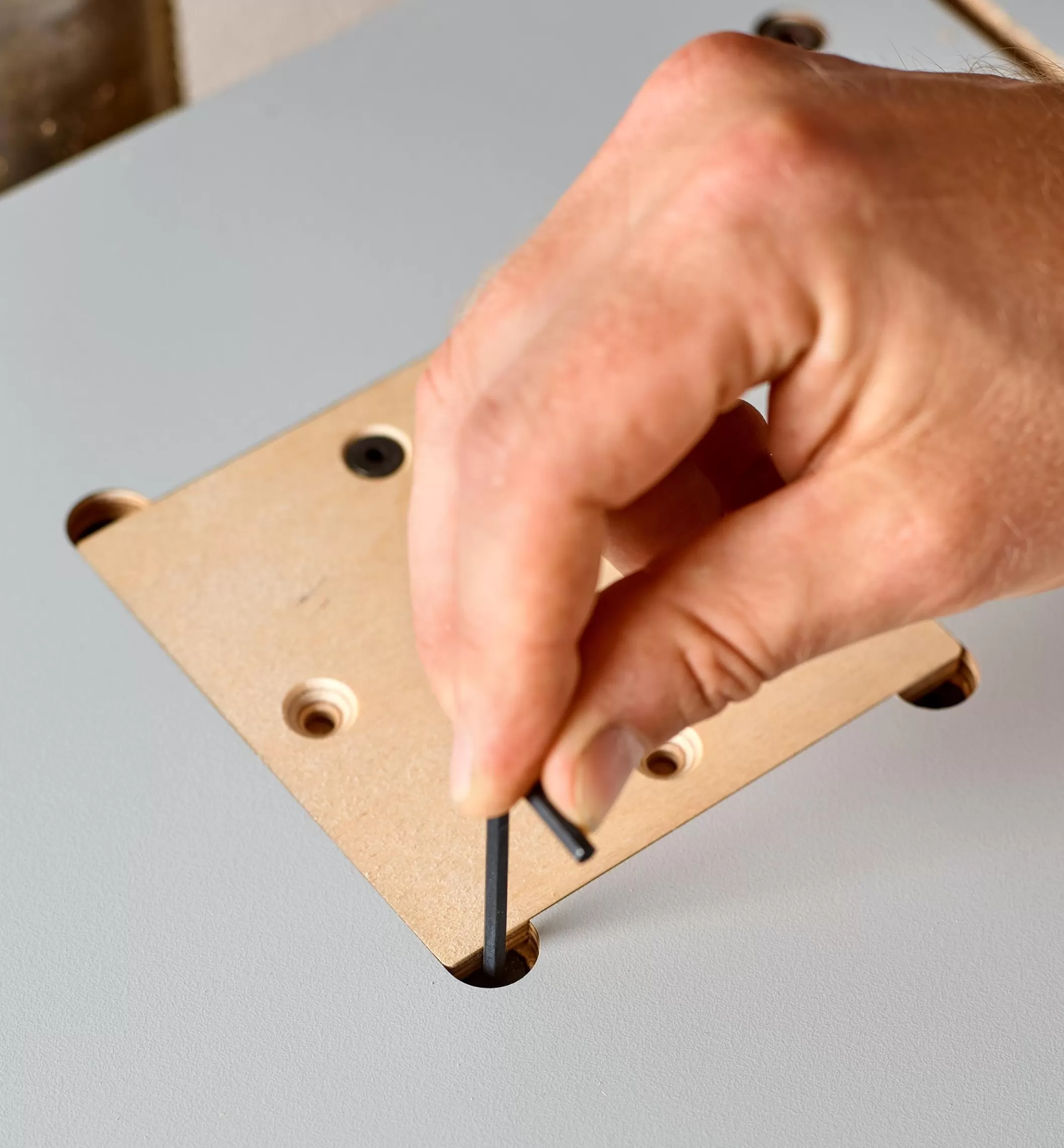

Precisely milled from 18mm Baltic birch plywood with a low-friction laminate surface, the sturdy 10 1/2″ × 15 1/2″ table top provides stable support for your work. It has two keyhole slots for mounting the included fence, as well as two standard 3/4″ dog holes for clamps, dogs or other accessories. To support through-drilling, an opening in the middle accepts a 4″ square sacrificial wooden insert (one supplied; replacements can be easily made from any 6mm or 1/4″ wooden sheet material).

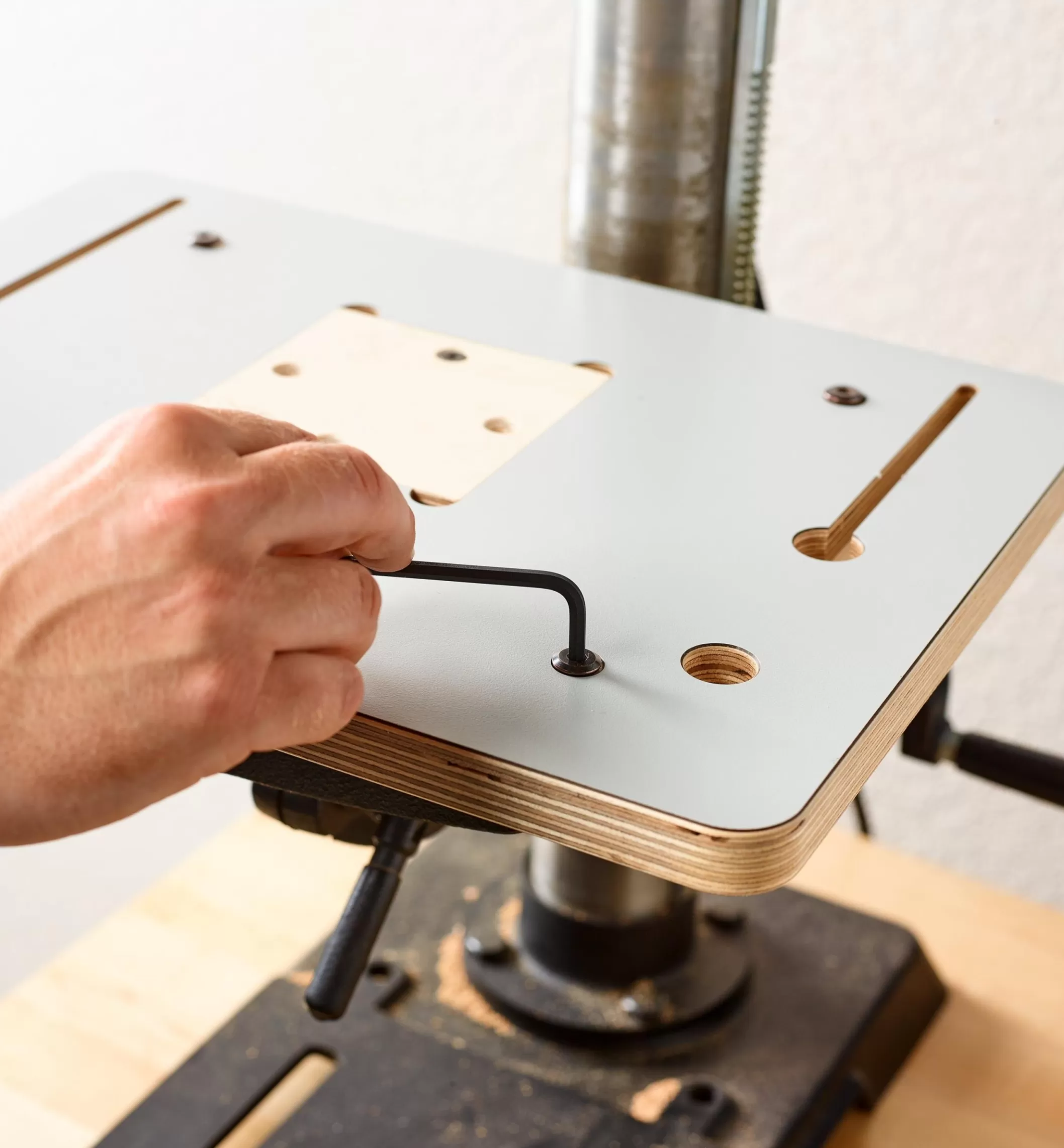

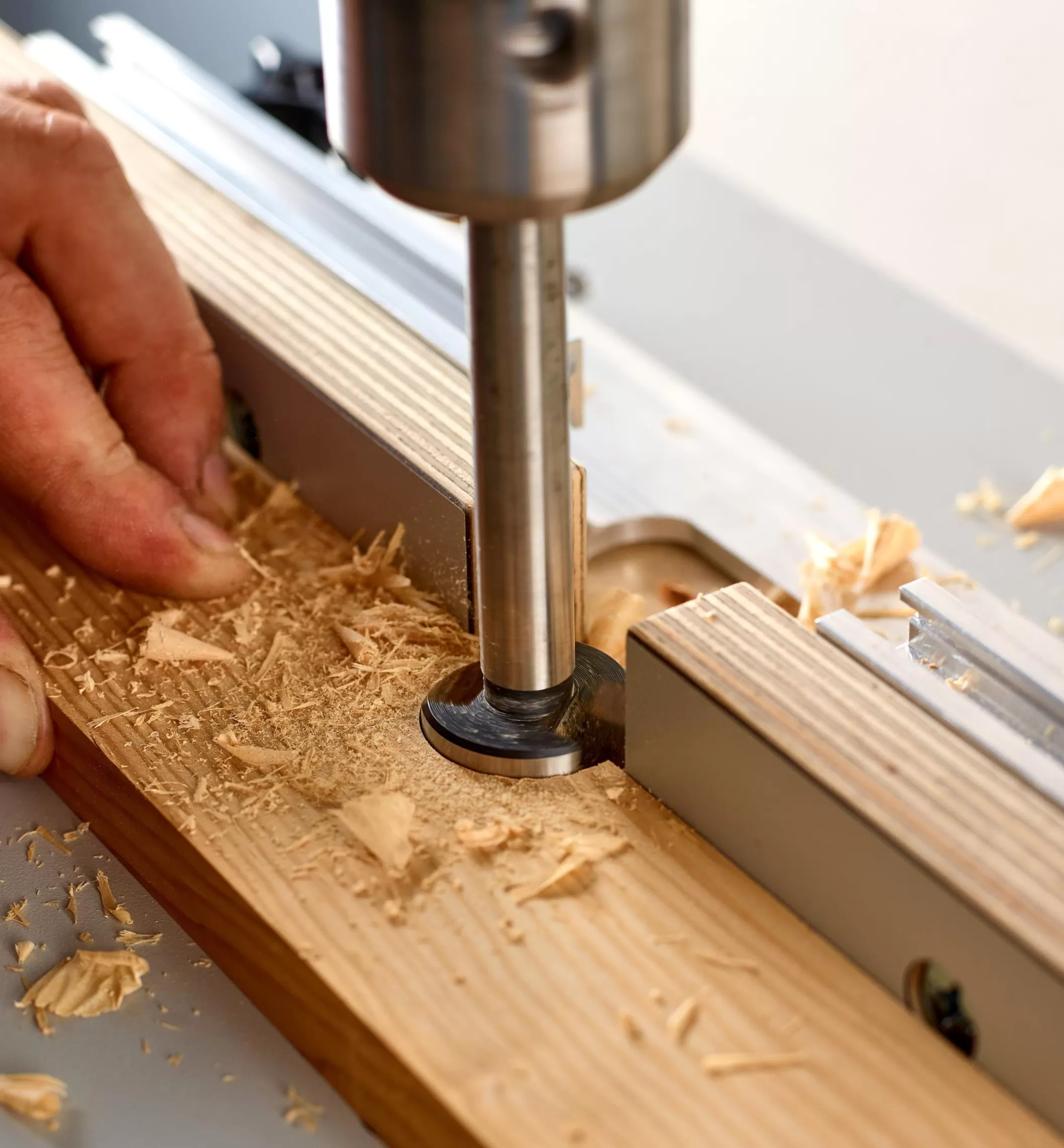

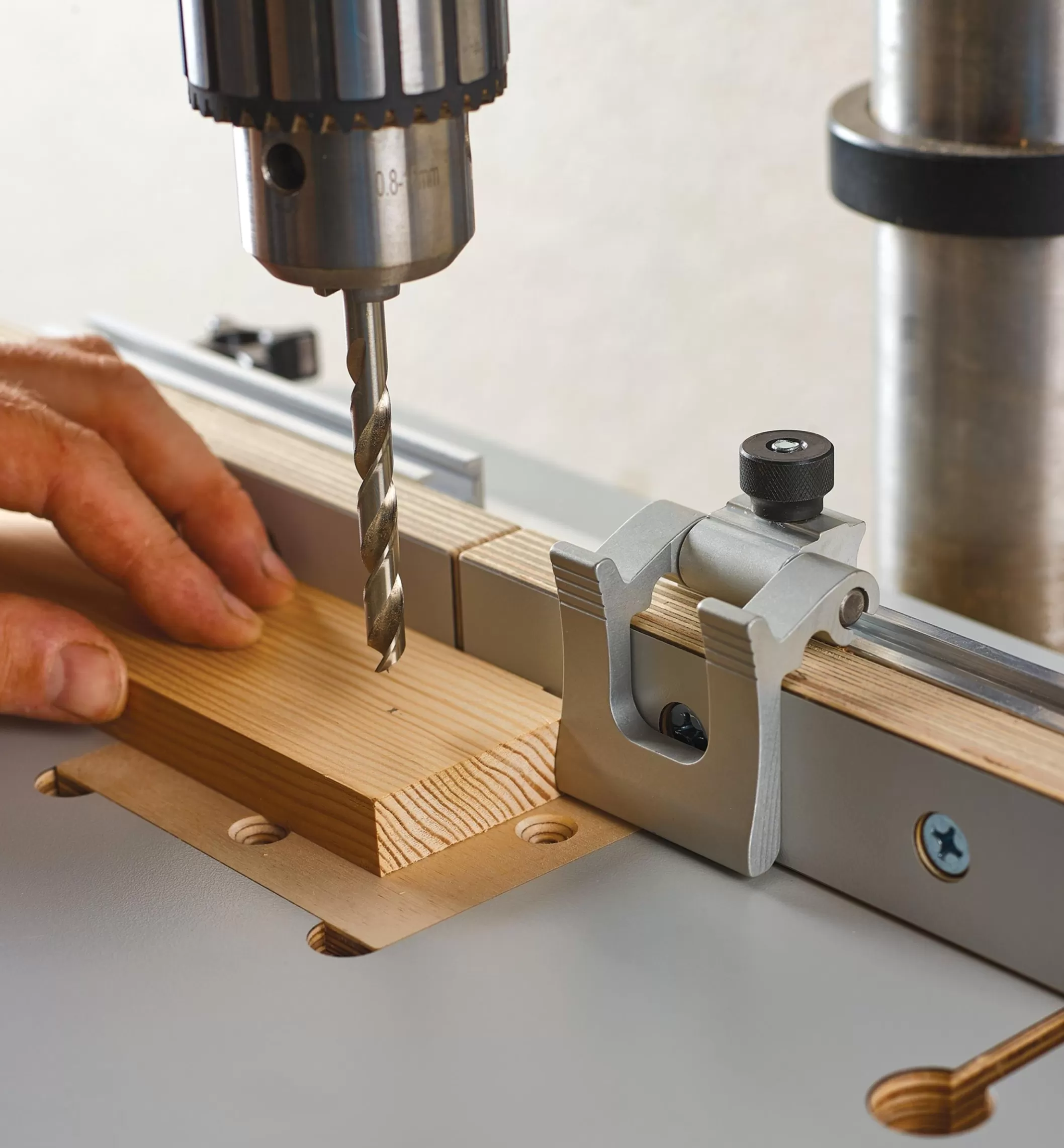

The 14″ machined aluminum fence permits accurate, repeatable stock positioning, and comes with hardware for mounting on the table (or in a pair of standard T-tracks or keyhole slots on other workshop fixtures). It has a pair of laminate-clad sub-fences (each 7 1/2″ long) that can be opened to allow off-edge drilling, and a T-slot track on top for mounting jigs and accessories (such as the Veritas 1 1/2″ flip stop).

Straightforward to mount and use, this is a practical, well-made upgrade to a woodworking drill press.

Made in Canada.
