Hot Lee Valley SawStop Scale Miter Gauge

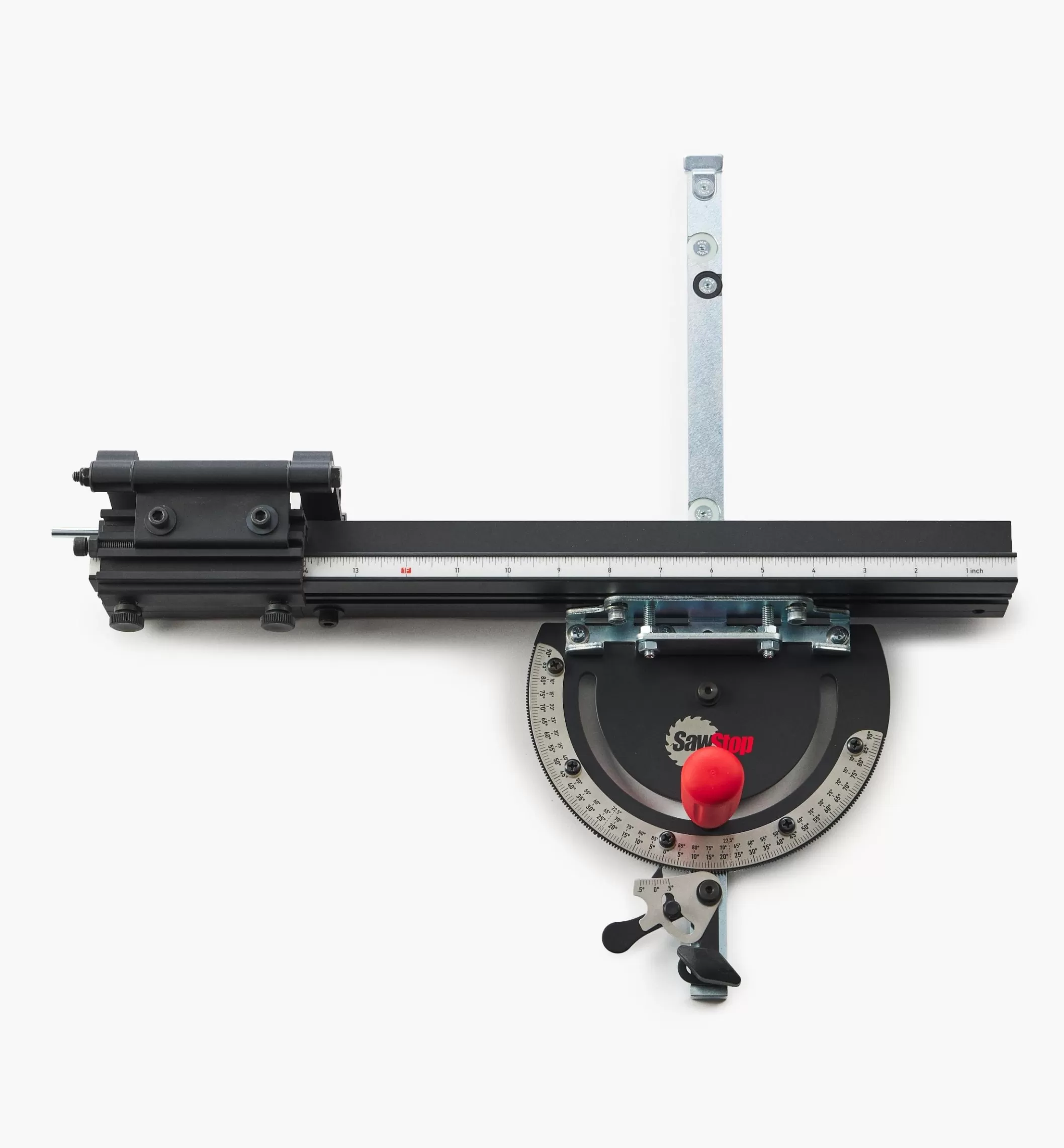

To allow quick, positive adjustment, this miter gauge uses an indexing pin that registers in a series of notches arranged around the outer edge of the steel protractor head in 1° increments. A vernier scale permits further micro-adjustment in 1/10° increments. The indexing pin can also be disengaged to permit free rotation of the protractor.

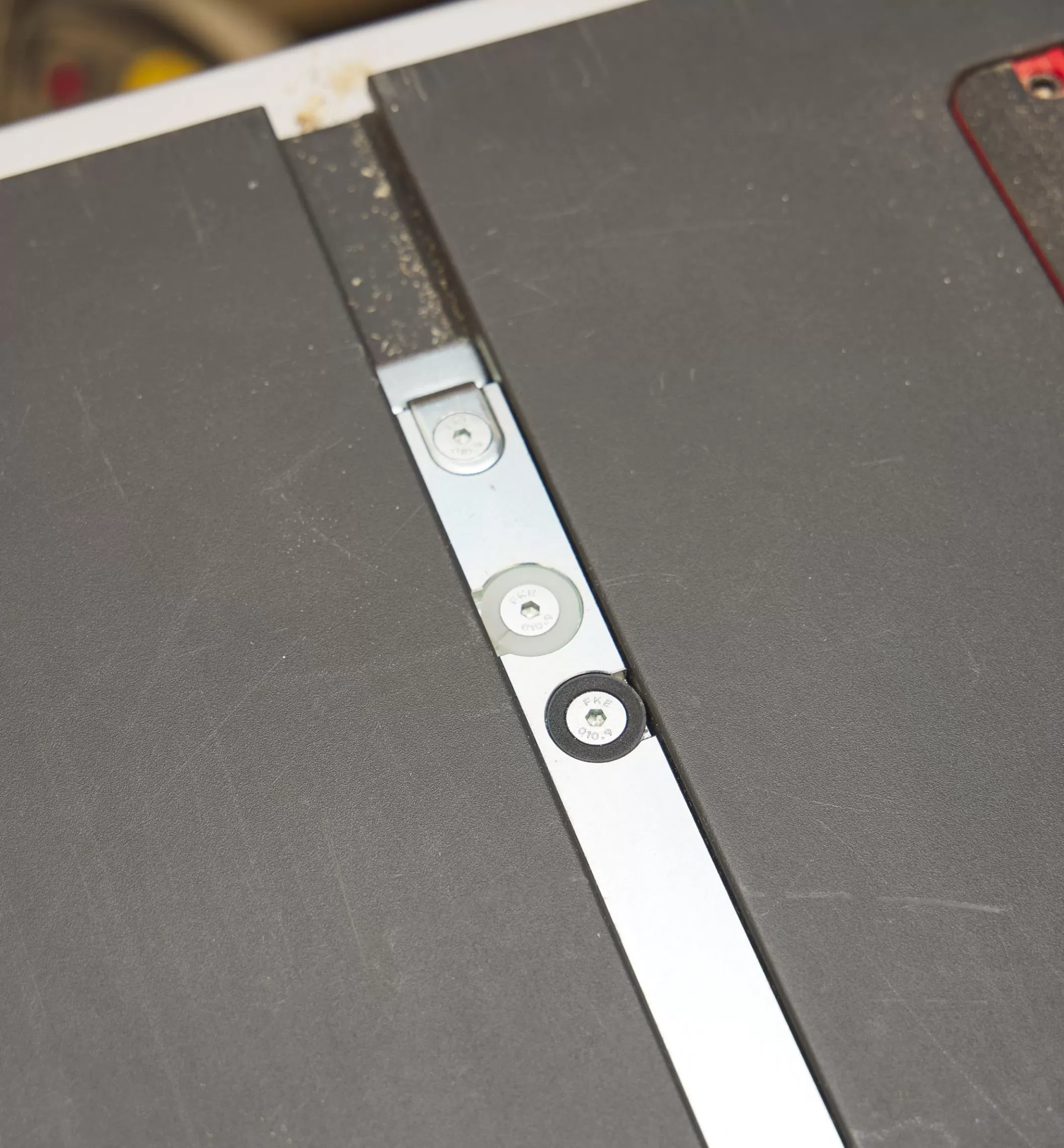

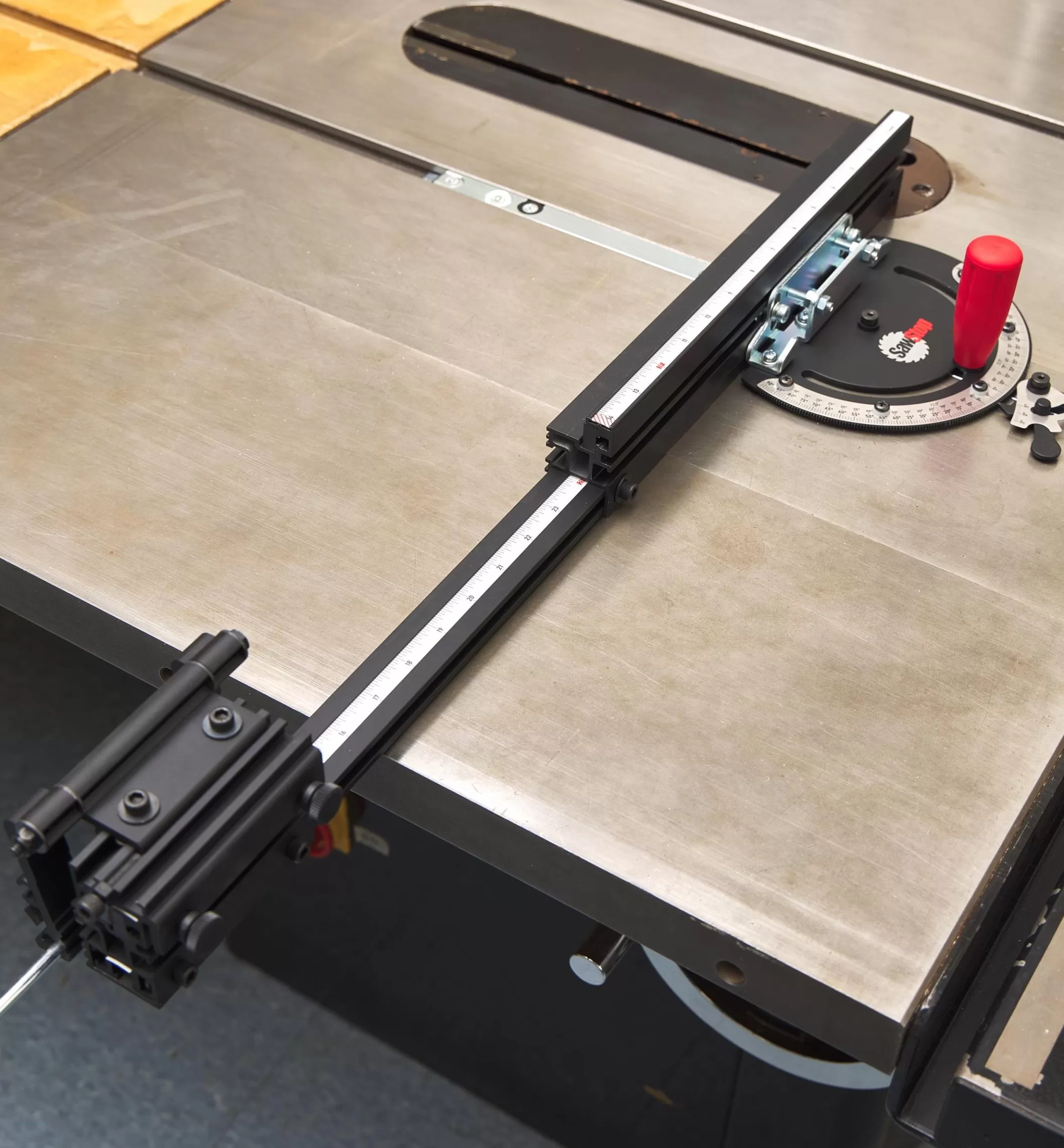

The 18 1/4″ extruded aluminum fence, which extends to 31″, has a T-track to mount a sacrificial sub-fence up to 3/4″ thick, and an integral scale for direct reading. Adjustable expansion discs in the 3/8″ × 3/4″ steel slider bar provide low-friction travel and remove lateral play within the miter slot.

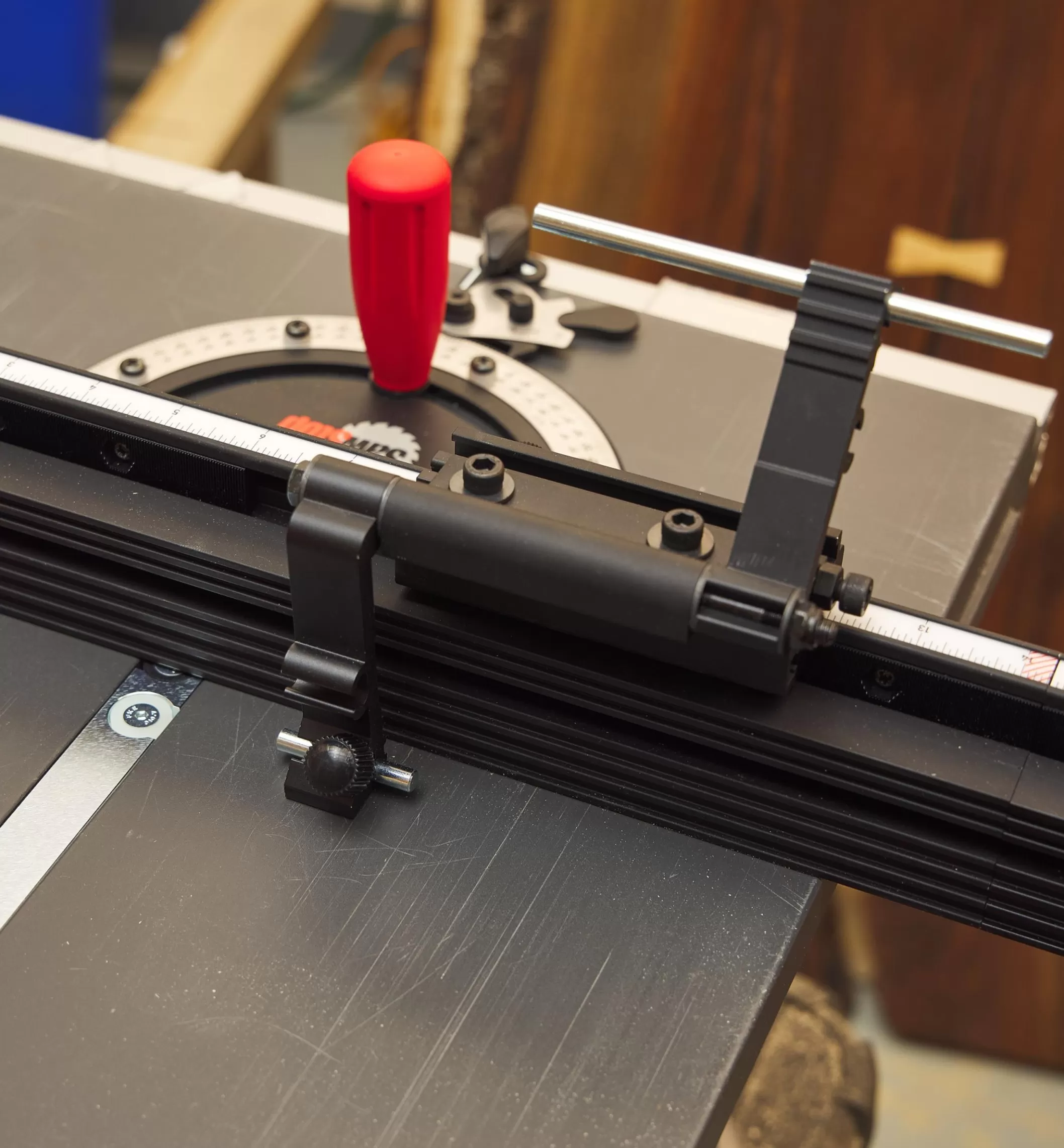

For accurate repeat cuts, the stop has dual flip-down arms (adjustable in 1/32″ increments) that let you switch between two different cut lengths within 4″ of each other without having to reset the stop position.

A hex key is included for adjustments.

Easy to set up and use, this is a practical, accurate miter gauge.

SawStop Scale Miter Gauge
Item #: 95T2254
SawStop Model #: TSA-SMG
