Flash Sale Lee Valley Blum AVENTOS HK-Top Soft-Close Lift System

Straightforward to install and smooth in operation, these well-designed lift-stays allow unobstructed access to overhead cabinets and compartments.

The surface-mount mechanisms project about 1 1/4″ from the cabinet carcass and have integrated hinges for direct attachment to a cabinet door. The hinges use a clip-on feature to allow doors to be removed without tools, and without loss of adjusted positions.

A hydraulic mechanism effortlessly lifts the door through its 107° range of motion and supports it in the open position (75° and 100° restrictors are integrated into the lift mechanism to limit its range to available clearance). As the door closes, integral soft-close damper mechanisms slowly and silently draw the door shut, preventing slamming.

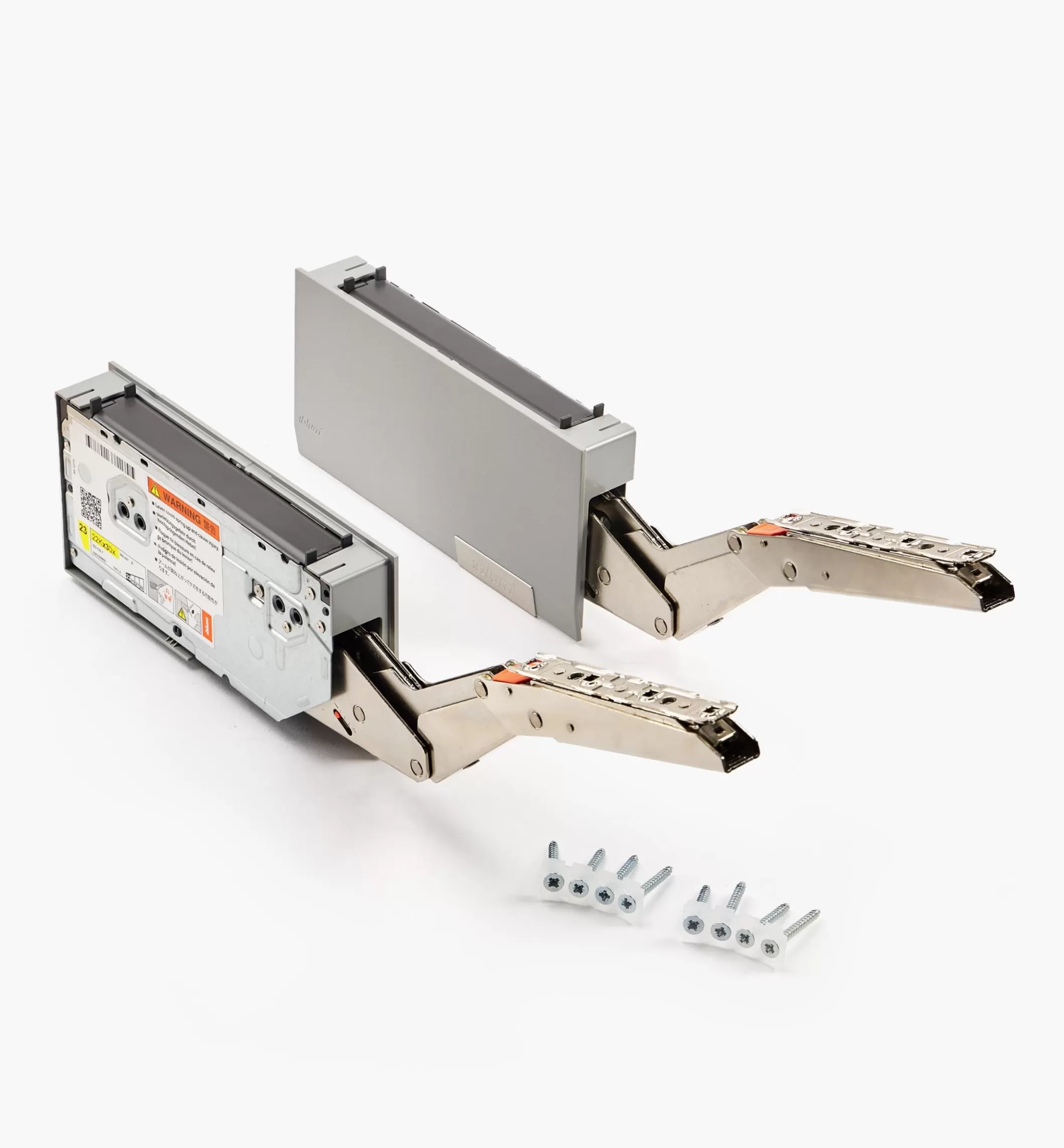

The mechanisms are easily adjusted for opening and closing tension as well as for fine-tuning the door position. Each kit includes a pair of plated steel mechanisms with plastic covers and mounting hardware.

Door must be between 205mm (8 1/4″) and 600mm (23 5/8″) high. Maximum door width is 1800mm (70 3/4″).

To determine the size of kit required, multiply door height (mm) by the sum of the weight of the door and double the weight of the handle (kg).

Example: for a 600mm door weighing 4kg plus a 0.125kg handle (×2), the calculation gives 2550 (choose large kit).

Made in Austria.
