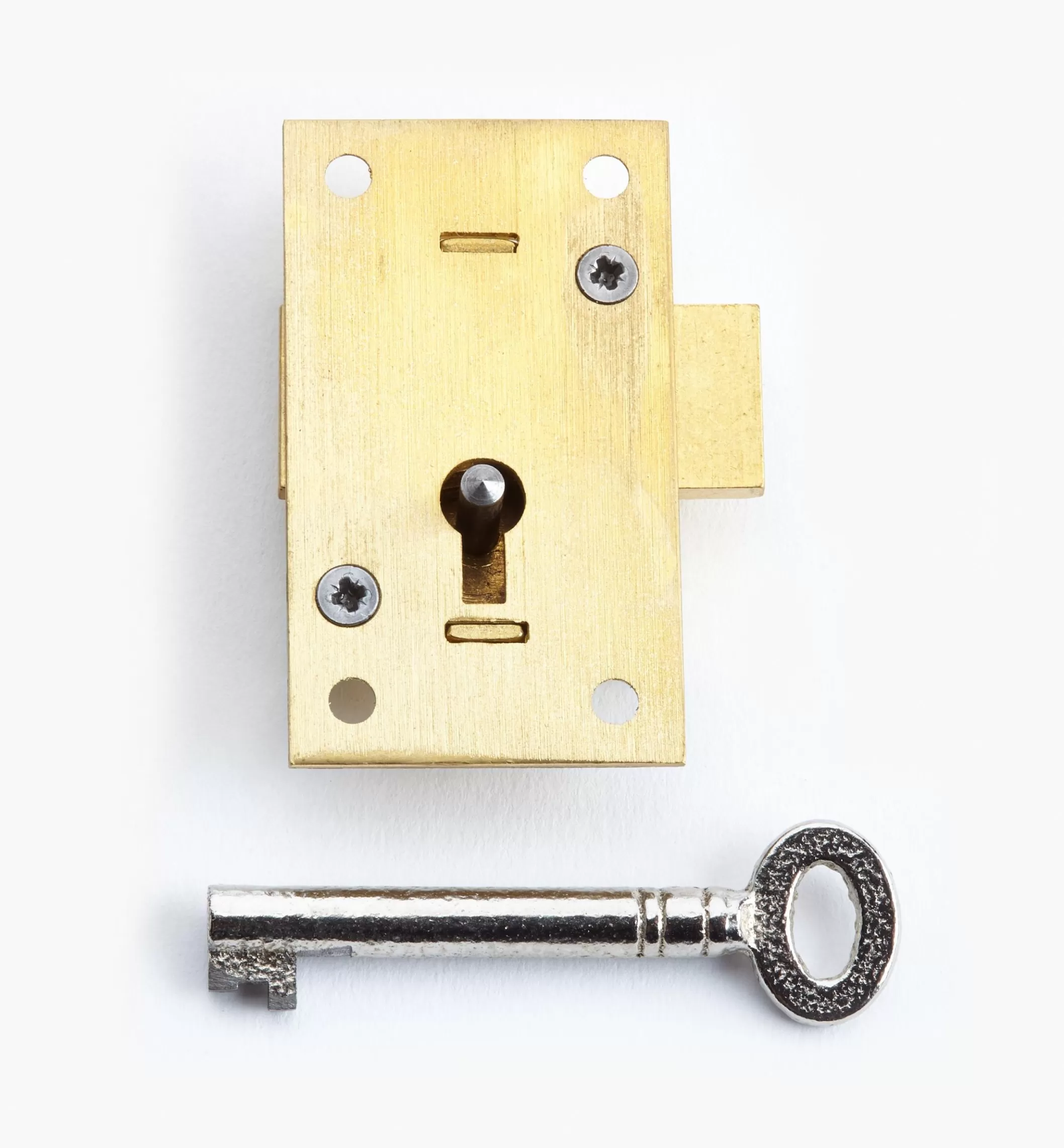

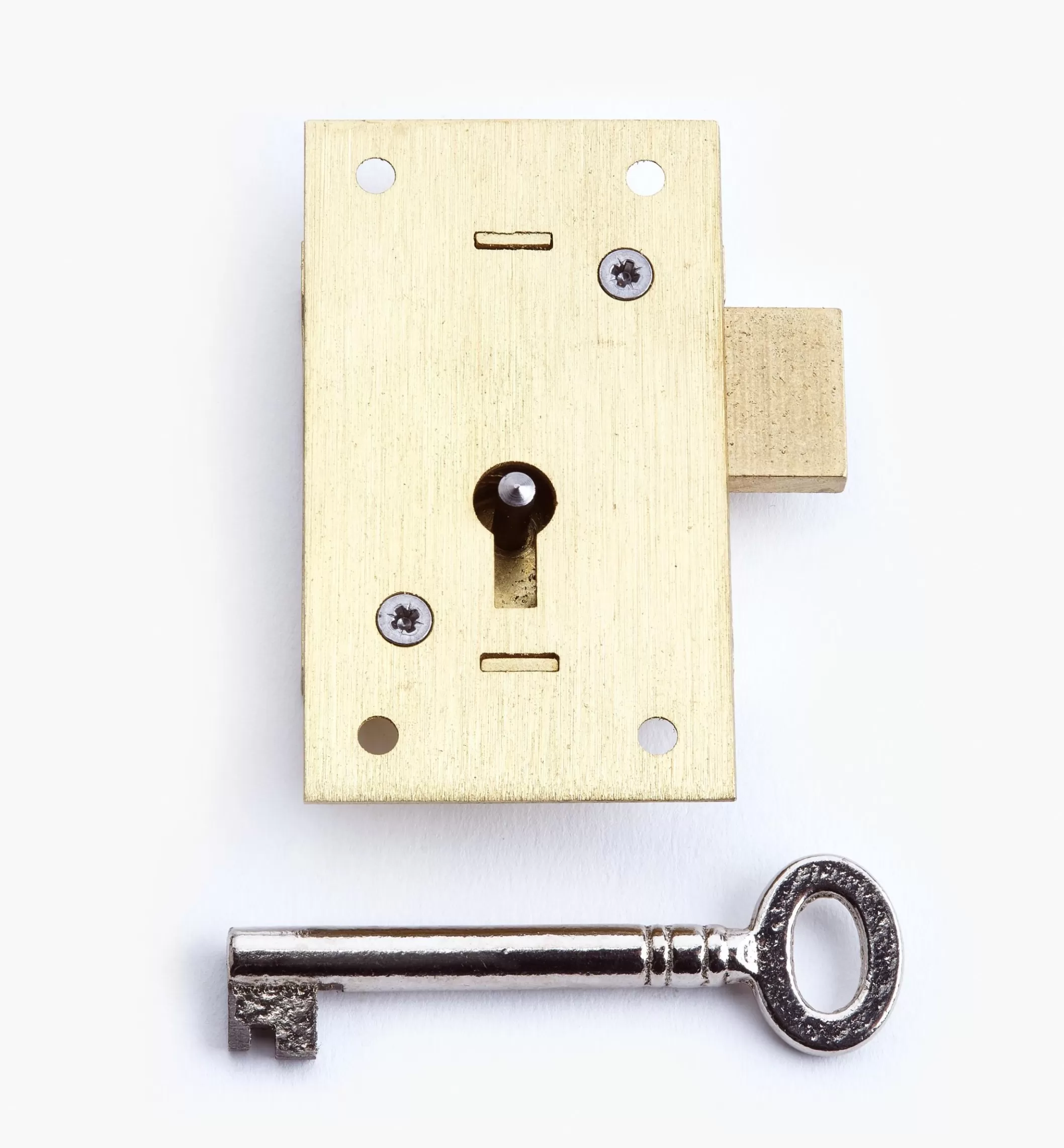

Fashion Lee Valley Standard Straight Cupboard Locks

All brass locks with a sanded cup and plate. Double-handed, they are surface mounted.

• The 1 1/2” wide lock is 15/16” deep, with a case depth of 3/8” and a distance to pin of 7/16”; requires #2 screws

• The 2” lock is 1 3/16” deep, with a case depth of 3/8” and a distance to pin of 9/16”; requires #3 screws

• The 2 1/2” and 3” wide locks are both 1 1/2” deep, with a case depth of 7/16” and distance to pin of 11/16”; require #4 screws

Screws are not included.
