Discount Lee Valley Servetto Galley Door Mechanisms

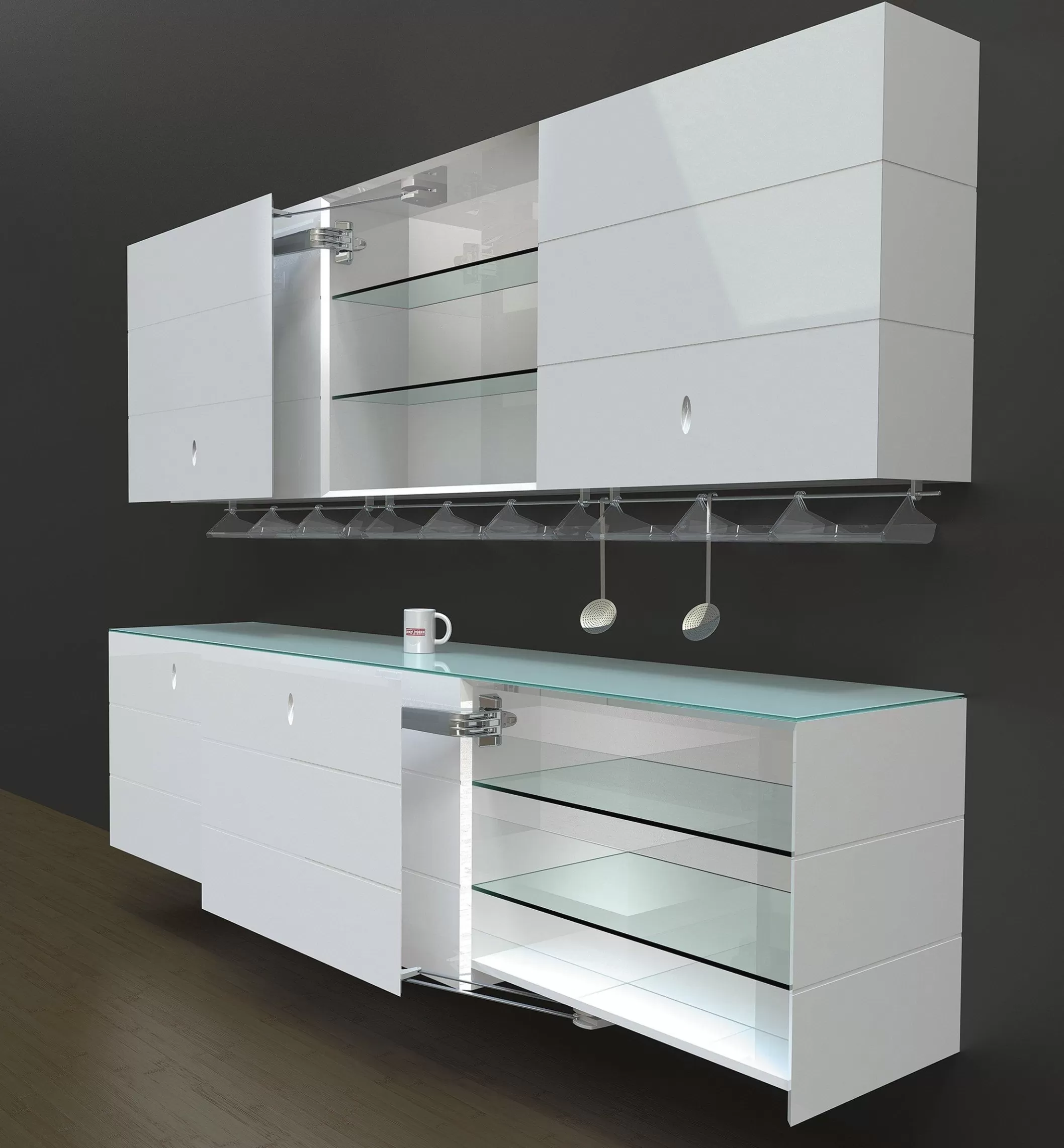

Often used where clearance in front of a cabinet or closet is too limited to permit use of conventional swinging doors, galley doors are designed to swing only a short distance into the room before travelling off to the side of the cabinet opening. These well-made galley hinges have dual-pivot arms that permit smooth, controlled motion without slamming.

The cupboard door kits use a sturdy main hinge arm that supports the weight of the door, paired with a stabilizer arm that helps regulate movement. The hinge arm attaches to the inside door face with a mounting plate that allows minor adjustment in three axes to fine tune the door position.

Both models are suitable for door panels 40cm to 90cm (15 3/4″ to 35 7/16″) tall and weighing up to 12kg (26.5 lb). The small version is for doors from 52cm to 60cm (about 20 1/2″ to 23 5/8″) wide with a minimum clearance of 27.5cm (about 10 7/8″) in front of the door, while the larger model supports doors 82cm to 90cm (32 5/16″ to 35 7/16″) wide and requires 41.5cm (about 16 3/8″) of clearance.

Largely made of powder-coated steel with sturdy plastic parts, each hinge kit comes with all components and mounting fasteners required for one door, and can be installed for right- or left-handed opening.

Made in Italy.
