Cheap Lee Valley Leigh D4R Pro Dovetail Jig & VRS

A dovetail joint is strong and attractive. Its strength comes from both the mechanical design and the large glue surfaces available. The attractiveness of the joint depends upon the skill of construction and the design and spacing of tails and pins. The Leigh D4R Pro allows a wide choice of spacing and adjusts for snug-fitting joints.

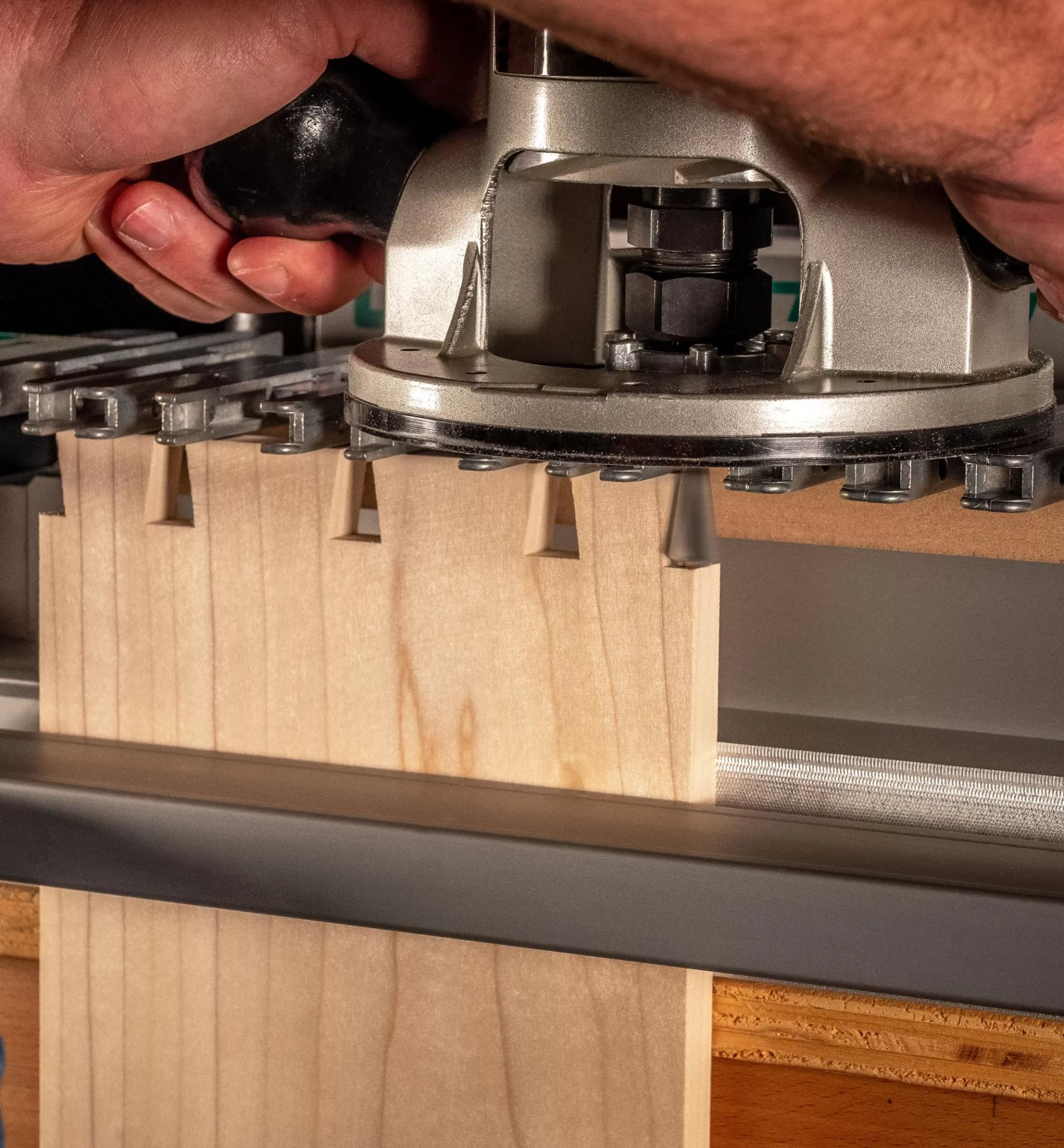

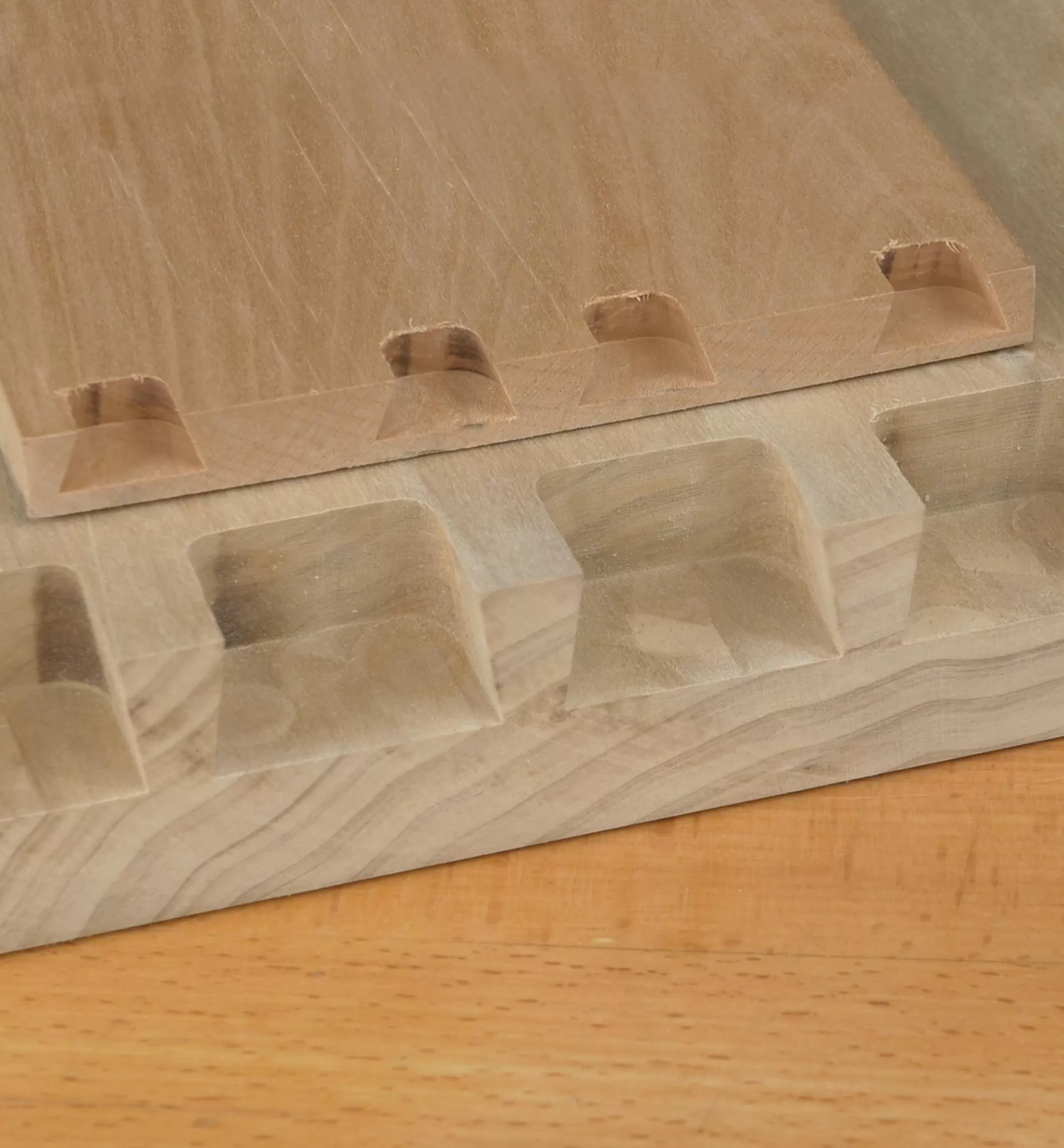

It creates 8° through dovetails in stock between 1/8″ and 1 1/4″ thick, as well as half-blind and sliding dovetails in material up to 1 1/2″ thick; maximum joint width is 24″. It cuts through and half-blind dovetails with fully variable sizing and spacing of tails, pins and half-pins. The jig will also cut finger joints. A spacer rod sets the fingers equidistant for machining 3/8″ or 3/4″ joints and 9/32″ or 1/2″ deep half-blind joints in a single pass. The eccentric guide bushing (supplied) simplifies fitting joints by letting you quickly and precisely change the distance between the cutter and finger assembly.

Constructed from extruded aluminum, the jig body has fixed integral stops to ensure joint alignment, and non-marring textured clamping surfaces. Quick-acting cams secure the work for precise machining. Built-in scales provide rapid and accurate fine adjustment for stock thickness and through dovetail fit. The finger assembly is removable and flips to change from through to half-blind mode; this reversing action automatically positions the scale correctly.

Comes with 1/2″ × 8° and 1/2″ × 14° dovetail cutters and a 5/16″ × 1″ straight cutter (all 8mm shanks), a 1/2″ to 8mm collet reducer, an eccentric guide bushing* and a 160-page manual. Router with a 1/2″ collet required.

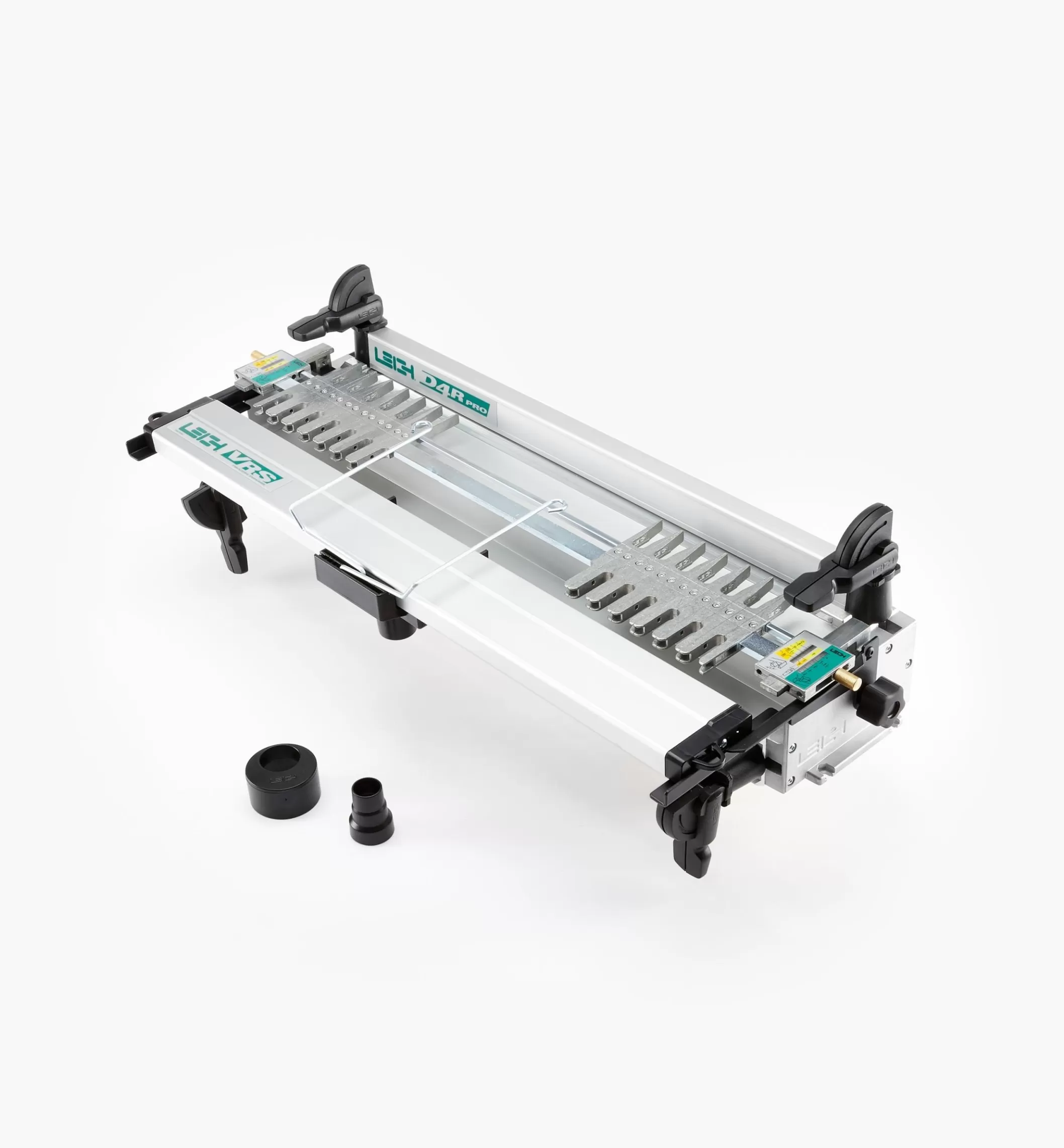

The jig is packaged with a vacuum and router support (VRS). Essentially an aluminum channel with a sliding vacuum pick-up, this attachment works with any router to effectively capture dust and support the area of the base plate that overhangs the finger assembly. The router rests on the channel and is positioned between two wire control arms that guide the dust chute below, keeping the chute aligned with the cutter as it traverses the jig.

Fits vacuum hoses from 1″ to 2 1/2″. Easily attached without modification to the jig using the included hardware, this is an effective solution to a notoriously tricky dust-collection situation.

Made in Canada.

*Fits base plates with a 1 3/16″ through-bore and a 1 3/8″ counterbore; please check the size of your router base plate before ordering.

Not available for shipment to Québec.
